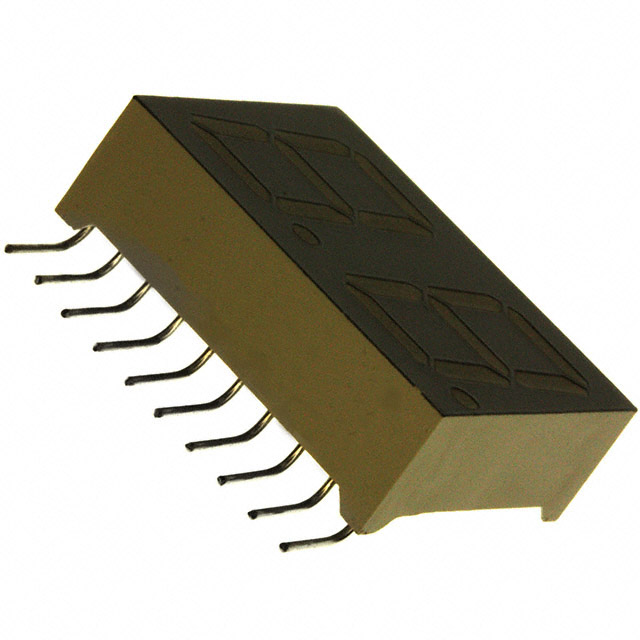

LDD-N514RI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.56" DBL RED 10SIP RA
Deep-Dive with AI
Search across all available documentation for this part.
LDD-N514RI-RA
ActiveLumex Opto/Components Inc.
DISP 7SEG 0.56" DBL RED 10SIP RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-N514RI-RA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 3.9 mcd |
| Number of Characters | 2 |
| Package / Case | 10-SIP Right Angle |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 0.315 ", 8 mm |
| Size / Dimension [y] | 25 mm, 0.984 in |
| Size / Dimension [z] | 19 mm, 0.748 " |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDD-N514 Series
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Cathode 2V 10mA 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) 10-SIP Right Angle
Documents
Technical documentation and resources
No documents available
