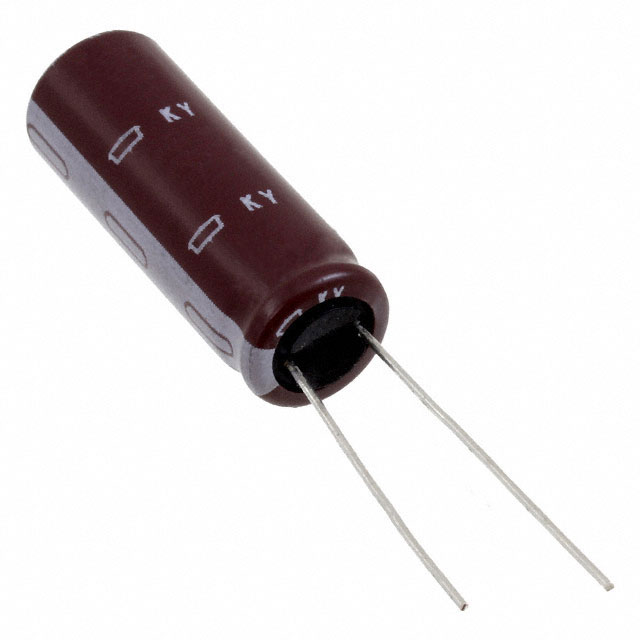

EKY-630ELL471MK30S

Active

Chemi-Con

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM, 63V, 20% +TOL, 20% -TOL, 470UF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-630ELL471MK30S

Active

Chemi-Con

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM, 63V, 20% +TOL, 20% -TOL, 470UF

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-630ELL471MK30S

Applications	General Purpose
Capacitance	470 µF
Height - Seated (Max) [Max]	31.5 mm
Height - Seated (Max) [Max]	1.24 in
Impedance	28 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.3 A
Ripple Current @ Low Frequency	1.15 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	63 V

EKY-630E Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Impedance	Applications	Package / Case	Voltage - Rated	Ripple Current @ Low Frequency	Tolerance	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]
Chemi-Con EKY-630ELL330MF11D	0.492 in	12.5 mm	Through Hole	-40 °C	105 ░C	5000 Hrs	0.248 in	6.3 mm	33 ÁF	265 mA	350 mOhms	General Purpose	Radial Can	63 V	106 mA 120 Hz	20 %	0.098 in	2.5 mm	Polar
Chemi-Con EKY-630ELL681ML25S			Through Hole	-40 °C	105 ░C	10000 Hrs	0.63 in	16 mm	680 µF	2.6 A	25 mOhms	General Purpose	Radial Can	63 V	1.56 A	20 %	0.295 in	7.5 mm	Polar	1.043 in	26.5 mm
Chemi-Con EKY-630ELL271MK20S	0.846 in	21.5 mm	Through Hole	-40 °C	105 ░C	10000 Hrs	0.492 in	12.5 mm	270 µF	1.5 A	41 mOhms	General Purpose	Radial Can	63 V	750 mA	20 %	0.197 in	5 mm	Polar
Chemi-Con EKY-630ELL471MK25S			Through Hole	-40 °C	105 ░C		0.492 in	12.5 mm	470 µF			General Purpose	Radial Can	63 V		20 %	0.197 in	5 mm	Polar	1.043 in	26.5 mm
Chemi-Con EKY-630ELL820MJC5S	0.551 "		Through Hole	-40 °C	105 ░C	7000 Hrs	0.394 in	10 mm	82 µF	690 mA	110 mOhms	General Purpose	Radial Can	63 V	276 mA	20 %	0.197 in	5 mm	Polar			14 mm
Chemi-Con EKY-630ELL221MJ25S			Through Hole	-40 °C	105 ░C	7000 Hrs	0.394 in	10 mm	220 µF	1.35 A	46 mOhms	General Purpose	Radial Can	63 V	675 mA	20 %	0.197 in	5 mm	Polar	1.043 in	26.5 mm
Chemi-Con EKY-630ELL681MK40S		1.634 "	Through Hole	-40 °C	105 ░C	10000 Hrs	0.492 in	12.5 mm	680 µF	2.8 A	21 mOhms	General Purpose	Radial Can	63 V	1.68 A	20 %	0.197 in	5 mm	Polar				41.5 mm
Chemi-Con EKY-630ELL681MM20S	0.846 in	21.5 mm	Through Hole	-40 °C	105 ░C	10000 Hrs	0.709 "	18 mm	680 µF	2.5 A	30 mOhms	General Purpose	Radial Can	63 V	1.5 A	20 %	0.295 in	7.5 mm	Polar
Chemi-Con EKY-630ETD330MF11D	0.492 in	12.5 mm	Through Hole	-40 °C	105 ░C	5000 Hrs	0.248 in	6.3 mm	33 ÁF	265 mA	350 mOhms	General Purpose	Radial Can	63 V	106 mA 120 Hz	20 %	0.098 in	2.5 mm	Polar
Chemi-Con EKY-630ELL471MK30S	1.24 in	31.5 mm	Through Hole	-40 °C	105 ░C	10000 Hrs	0.492 in	12.5 mm	470 µF	2.3 A	28 mOhms	General Purpose	Radial Can	63 V	1.15 A	20 %	0.197 in	5 mm	Polar

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.19
		10	$ 0.74
		50	$ 0.56
		100	$ 0.51
		500	$ 0.41
		1000	$ 0.38
		2500	$ 0.35
		5000	$ 0.33

Description

General part information

EKY-630E Series

470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
