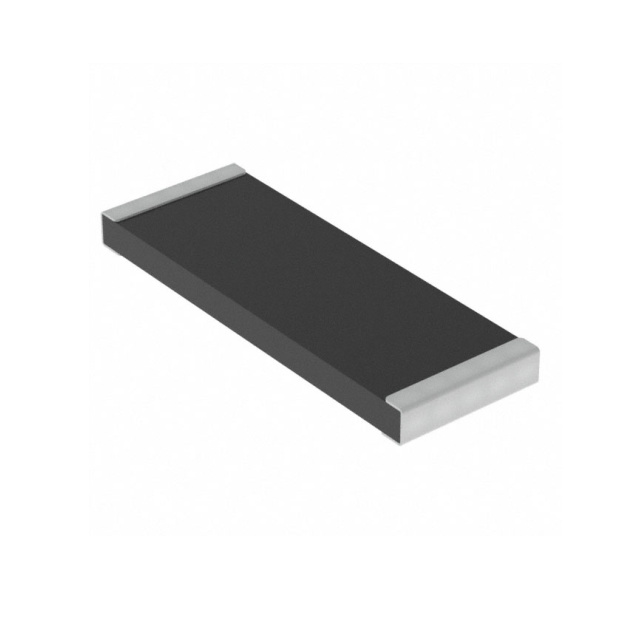

RNCF2512ATE200R

Active

Stackpole Electronics Inc

RES SMD 200 OHM 0.05% 3/4W 2512

Search across all available documentation for this part.

Active

Stackpole Electronics Inc

RES SMD 200 OHM 0.05% 3/4W 2512

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Package / Case	Package / Case	Supplier Device Package	Resistance	Temperature Coefficient	Features	Composition	Tolerance	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]
Stackpole Electronics Inc RNCF2512AKE250R	AEC-Q200	0.026 in	0.65 mm	6.3 mm	0.122 in	3.1 mm	0.248 in	0.75 W	0.75 W	6432 Metric	2512	2512	250 Ohms	25 ppm/°C	Automotive AEC-Q200	Thin Film	0.05 %	2	155 °C	-55 °C
Stackpole Electronics Inc RNCF2512AKT140K	AEC-Q200	0.026 in	0.65 mm	6.3 mm	0.122 in	3.1 mm	0.248 in	0.5 W	0.5 W	6432 Metric	2512	2512	140 kOhms	10 ppm/°C	Automotive AEC-Q200	Thin Film	0.05 %	2	155 °C	-55 °C
Stackpole Electronics Inc RNCF2512AKT210K	AEC-Q200	0.026 in	0.65 mm	6.3 mm	0.122 in	3.1 mm	0.248 in	0.5 W	0.5 W	6432 Metric	2512	2512	210 kOhms	10 ppm/°C	Automotive AEC-Q200	Thin Film	0.05 %	2	155 °C	-55 °C
Stackpole Electronics Inc RNCF2512ATE200R	AEC-Q200	0.026 in	0.65 mm	6.3 mm	0.122 in	3.1 mm	0.248 in	0.75 W	0.75 W	6432 Metric	2512	2512	200 Ohms	25 ppm/°C	Automotive AEC-Q200	Thin Film	0.05 %	2	155 °C	-55 °C
Stackpole Electronics Inc RNCF2512AKT221K	AEC-Q200	0.026 in	0.65 mm	6.3 mm	0.122 in	3.1 mm	0.248 in	0.5 W	0.5 W	6432 Metric	2512	2512	221 kOhms	10 ppm/°C	Automotive AEC-Q200	Thin Film	0.05 %	2	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.89
	Digi-Reel®	1	$ 0.89
	Tape & Reel (TR)	4000	$ 0.31

General part information

200 Ohms ±0.05% 0.75W, 3/4W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thin Film
