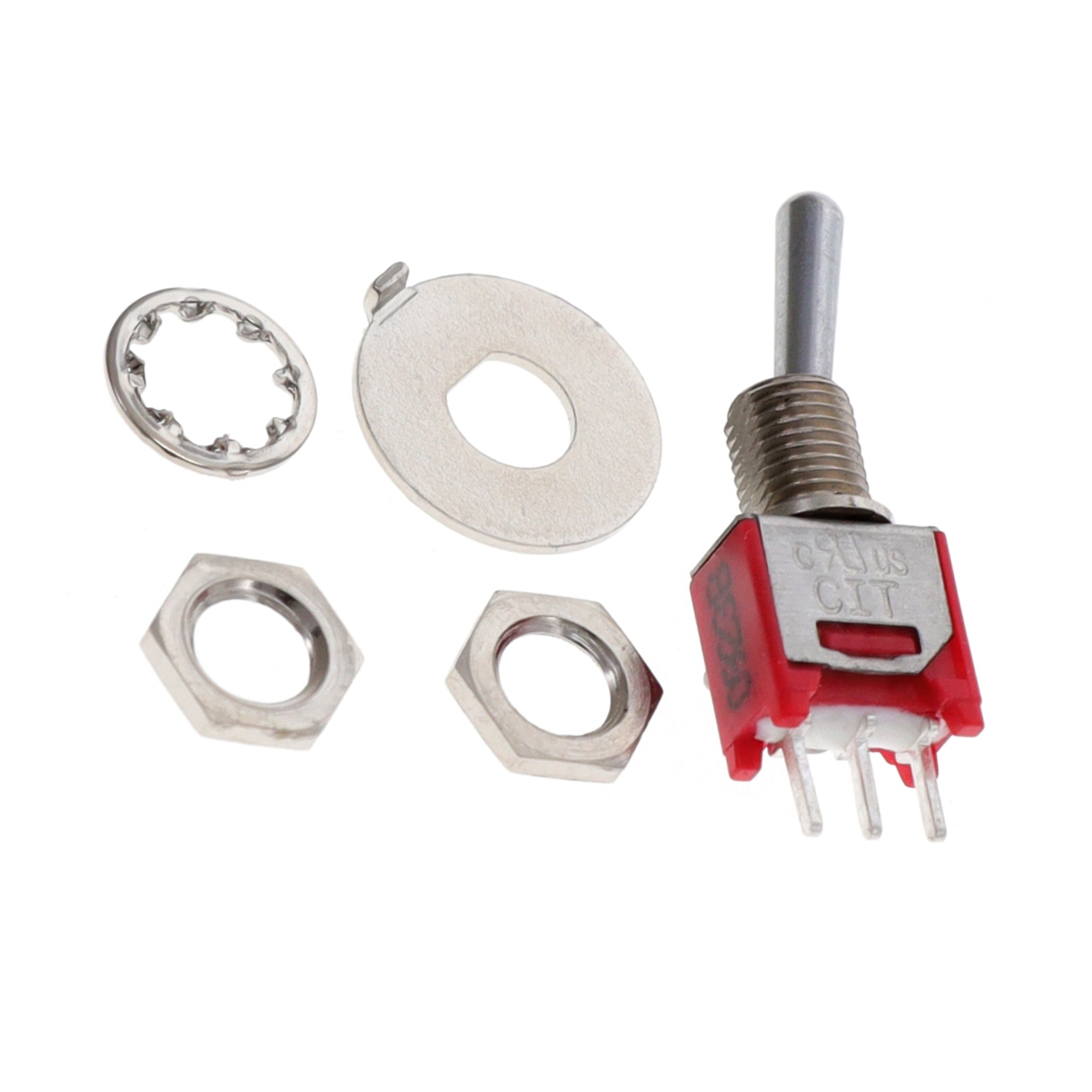

BNT11SECQE

Active

CIT Relay and Switch

SWITCH TOGGLE SPDT 3A 120V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TOGGLE SPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	BNT11SECQE

Actuator Length [x]	9.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Illumination	Electrical Life	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Circuit	Switch Function	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Actuator Material	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Mounting Type
CIT Relay and Switch BNT11SEBQE	Non-Illuminated	30000 Cycles	28 V	3 A	Solder Lug	SPDT	On-On	10-48	4.95 mm	120 V	Brass Chrome Plated	Standard Round	85 °C	-40 °C	9.4 mm
CIT Relay and Switch BNT11SECQE	Non-Illuminated	30000 Cycles	28 V	3 A	PC Pin	SPDT	On-On	10-48	4.95 mm	120 V	Brass Chrome Plated	Standard Round	85 °C	-40 °C	9.4 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
