LDS-AD14RI

Active

Lumex Opto/Components Inc.

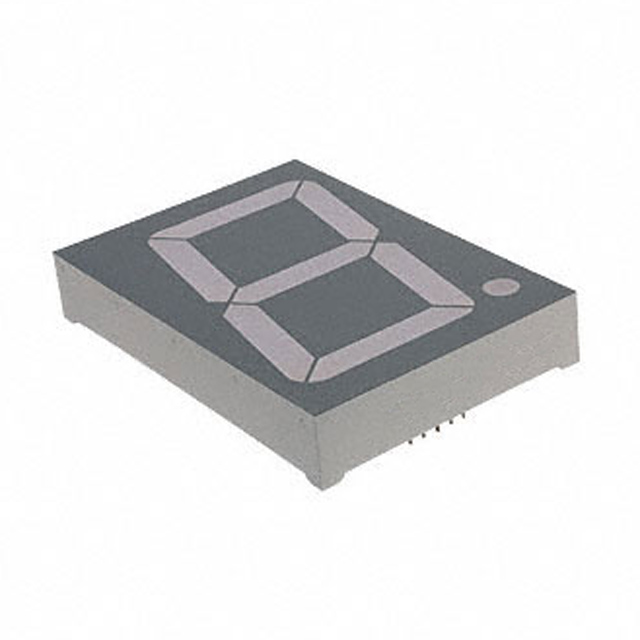

DISPLAY 7SEG 2.24" SGL RED 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDS-AD14RI

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size [custom]	56.9 mm
Digit/Alpha Size [custom]	2.24 in
Display Type	7-Segment
Millicandela Rating	9 mcd
Number of Characters [custom]	1
Package / Case	2.367 in
Package / Case	60.1 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	2.756 in
Size / Dimension [x]	70 mm
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	0.472 "
Size / Dimension [z]	12 mm
Wavelength - Peak	635 nm

LDS-AD14 Series

Part	Wavelength - Peak	Digit/Alpha Size [custom]	Digit/Alpha Size [custom]	Current - Test	Display Type	Number of Characters [custom]	Millicandela Rating	Power Dissipation (Max) [Max]	Color	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Common Pin	Package / Case	Package / Case	Package / Case
Lumex Opto/Components Inc. LDS-AD14RI	635 nm	56.9 mm	2.24 in	10 mA	7-Segment	1	9 mcd	105 mW	Red	0.472 "	12 mm	2.756 in	48 mm	70 mm	1.89 in	Common Anode	2.367 in	60.1 mm	10-DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDS-AD14 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 8V 10mA 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm) 10-DIP (2.367", 60.10mm)
