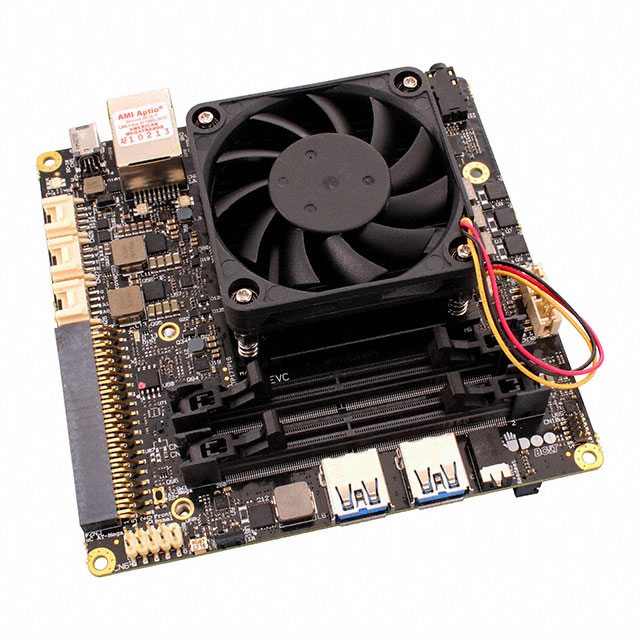

SC40-2020-0000-C1-V

Active

UDOO

SBC 3.6GHZ 4 CORE 32GB/- RAM

Search across all available documentation for this part.

Active

UDOO

SBC 3.6GHZ 4 CORE 32GB/- RAM

Technical Specifications

Parameters and characteristics for this part

Specification	SC40-2020-0000-C1-V

Analog Input:Output	13:00
Cooling Type	Fan + Heat Sink
Core Processor	AMD Ryzen Embedded V1605B
Digital I/O Lines	25
Ethernet	RJ45, GbE
Number of Cores	4
RAM Capacity/Installed	32GB/-
Size / Dimension [x]	4.72 in
Size / Dimension [x]	119.88 mm
Size / Dimension [y]	119.88 mm
Size / Dimension [y]	4.72 in
Speed [Max]	3.6 GHz
Speed [Min]	2 GHz
Storage Interface	SSD SATA M.2, NVME M.2, SATA 3.0, eMMC 5.0
USB	USB-PD 3.0, USB 3.0 Type-A (2), USB 3.1 Gen 2, USB Type-C (2)
Video Outputs	DP, HDMI

Part	RAM Capacity/Installed	Digital I/O Lines	Storage Interface	Core Processor	Speed [Max]	Speed [Min]	Video Outputs	Number of Cores	Analog Input:Output	Ethernet	USB	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Cooling Type
UDOO SC40-1000-0000-C0-V	32GB/-	25	eMMC 5.0 NVME M.2 SATA 3.0 SSD SATA M.2	AMD Ryzen Embedded V1202B	3.2 GHz	2.3 GHz	DP HDMI	2	13:00	GbE RJ45	USB 3.0 Type-A (2) USB 3.1 Gen 2 USB Type-C (2) USB-PD 3.0	119.88 mm	4.72 in	4.72 in	119.88 mm	Fan + Heat Sink
UDOO SC40-2020-0000-C1-V	32GB/-	25	eMMC 5.0 NVME M.2 SATA 3.0 SSD SATA M.2	AMD Ryzen Embedded V1605B	3.6 GHz	2 GHz	DP HDMI	4	13:00	GbE RJ45	USB 3.0 Type-A (2) USB 3.1 Gen 2 USB Type-C (2) USB-PD 3.0	119.88 mm	4.72 in	4.72 in	119.88 mm	Fan + Heat Sink

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 518.35

General part information

Single Board Computer 2.0GHz ~ 3.6GHz 4 Core 32GB/- RAM AMD Ryzen Embedded V1605B
