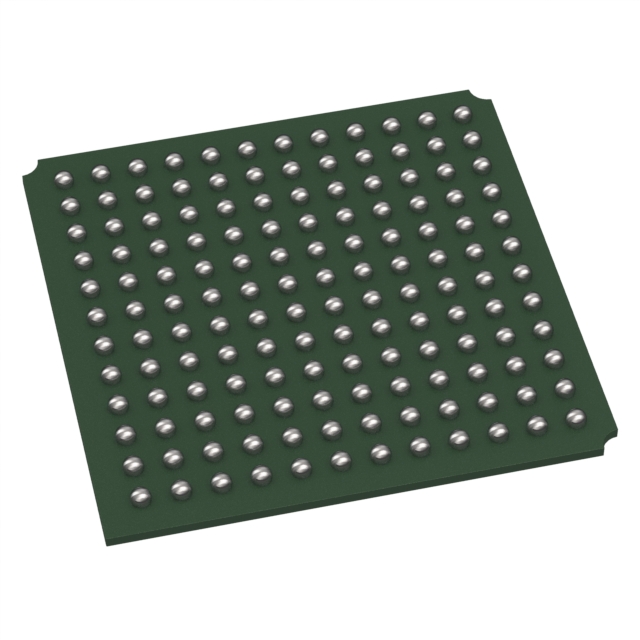

72V36100L6BCY

Obsolete

Renesas Electronics Corporation

IC FIFO ASYNC/SYNC 64KX36 4NS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

72V36100L6BCY

Obsolete

Renesas Electronics Corporation

IC FIFO ASYNC/SYNC 64KX36 4NS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	72V36100L6BCY

Access Time	4 ns
Bus Directional	Uni-Directional
Current - Supply (Max) [Max]	40 mA
Data Rate	166 MHz
Expansion Type	Width, Depth
Function	Synchronous, Asynchronous
FWFT Support	True
Memory Size	2.25 M
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Programmable Flags Support	True
Retransmit Capability	True
Voltage - Supply [Max]	3.45 V
Voltage - Supply [Min]	3.15 V

72V36100 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Function	Bus Directional	Data Rate	Package / Case	Expansion Type	Supplier Device Package	Mounting Type	Memory Size	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Access Time
Renesas Electronics Corporation 72V36100L6PF8	70 °C	0 °C	Synchronous	Uni-Directional	166 MHz	128-LQFP	Depth Width	128-TQFP (14x20)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	4 ns
Renesas Electronics Corporation 72V36100L10PF8	70 °C	0 °C	Synchronous	Uni-Directional	100 MHz	128-LQFP	Depth Width	128-TQFP (14x20)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	6.5 ns
Renesas Electronics Corporation 72V36100L10PFI8	85 °C	-40 °C	Synchronous	Uni-Directional	100 MHz	128-LQFP	Depth Width	128-TQFP (14x20)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	6.5 ns
Renesas Electronics Corporation 72V36100L7-5BB	70 °C	0 °C	Synchronous	Uni-Directional	133.3 MHz	144-BGA	Depth Width	144-PBGA (13x13)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	5 ns
Renesas Electronics Corporation 72V36100L7-5PFI	85 °C	-40 °C	Synchronous	Uni-Directional	133.3 MHz	128-LQFP	Depth Width	128-TQFP (14x20)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	5 ns
Renesas Electronics Corporation 72V36100L7-5BBI8
Renesas Electronics Corporation 72V36100L6BCY	70 °C	0 °C	Asynchronous Synchronous	Uni-Directional	166 MHz		Depth Width			2.25 M	40 mA	3.45 V	3.15 V	4 ns
Renesas Electronics Corporation 72V36100L7-5PF8	70 °C	0 °C	Synchronous	Uni-Directional	133.3 MHz	128-LQFP	Depth Width	128-TQFP (14x20)	Surface Mount	2.25 M	40 mA	3.45 V	3.15 V	5 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

72V36100 Series

Asynchronous, Synchronous FIFO 2.25M (64K x 36) Uni-Directional 166MHz 4ns
