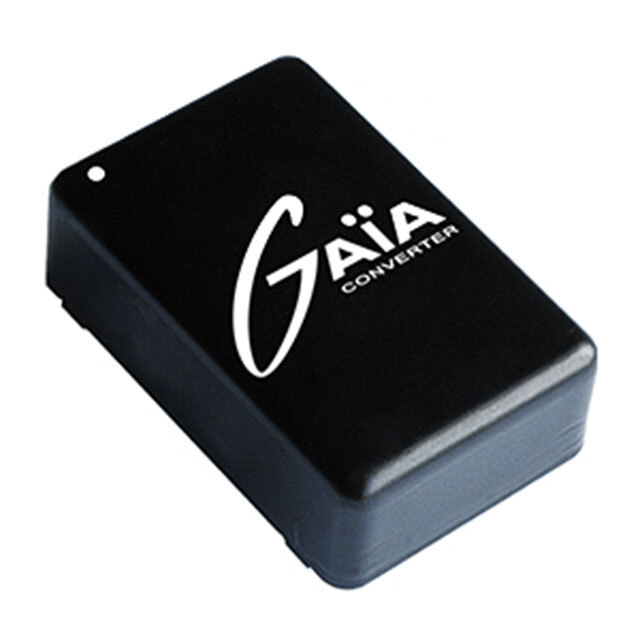

MGDDI-20-R-E

Active

Gaia Converter

DC DC CONVERTER 12V 12V 20W

Search across all available documentation for this part.

Active

Gaia Converter

DC DC CONVERTER 12V 12V 20W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Efficiency	Package / Case	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 2	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Current - Output (Max)
Gaia Converter MGDDI-20-R-I	Through Hole	24 V	425 mA	425 mA	90 %	16-DIP Module	ITE (Commercial)	12.7 mm	26.1 mm	1.58 "	40.1 mm	0.5 in	1.03 in	160 V	2250 VDC	24 V	Isolated Module	100 °C	-40 °C	20 W	2
Gaia Converter MGDDI-06-R-C	Through Hole	5 V			83 %	10-DIP Module	ITE (Commercial)	8.2 mm	19.8 mm	1.1 "	28 mm	0.32 "	0.78 in	160 V	2250 VDC	5 V	Isolated Module	100 °C	-40 °C	6 W	2	600 mA
Gaia Converter MGDDI-06-R-F	Through Hole	15 V			83 %	10-DIP Module	ITE (Commercial)	8.2 mm	19.8 mm	1.1 "	28 mm	0.32 "	0.78 in	160 V	2250 VDC	15 V	Isolated Module	100 °C	-40 °C	6 W	2
Gaia Converter MGDDI-06-R-E	Through Hole	12 V	250 mA		83 %	10-DIP Module	ITE (Commercial)	8.2 mm	19.8 mm	1.1 "	28 mm	0.32 "	0.78 in	160 V	2250 VDC	12 V	Isolated Module	100 °C	-40 °C	6 W	2		250 mA
Gaia Converter MGDDI-20-R-E	Through Hole	12 V	825 mA		90 %	16-DIP Module	ITE (Commercial)	12.7 mm	26.1 mm	1.58 "	40.1 mm	0.5 in	1.03 in	160 V	2250 VDC	12 V	Isolated Module	100 °C	-40 °C	20 W	2		825 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V 12V 825mA, 825mA 12V - 160V Input
