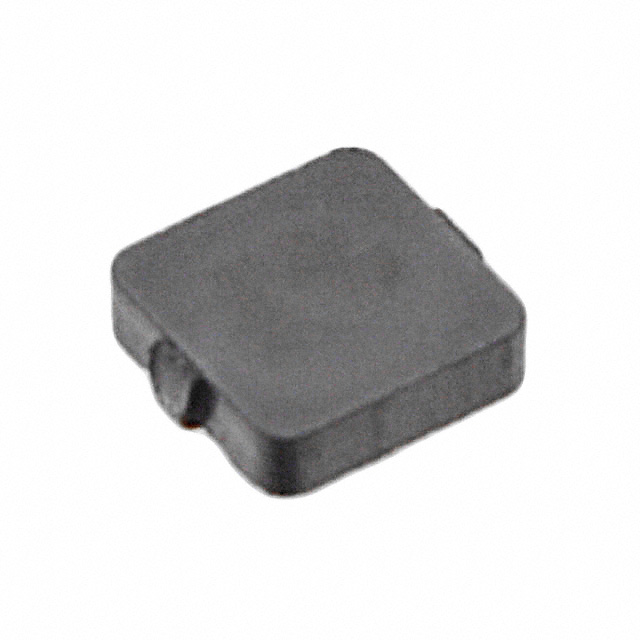

SRP4012-1R5M
ObsoleteBourns Inc.
FIXED IND 1.5UH 3A 50 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SRP4012-1R5M
ObsoleteBourns Inc.
FIXED IND 1.5UH 3A 50 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP4012-1R5M |
|---|---|
| Current - Saturation (Isat) | 5.5 A |
| Current Rating (Amps) | 3 A |
| DC Resistance (DCR) | 50 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 4.7 mm |
| Size / Dimension [x] | 0.185 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SRP4012 Series
1.5 µH Shielded Drum Core, Wirewound Inductor 3 A 50mOhm Max Nonstandard
