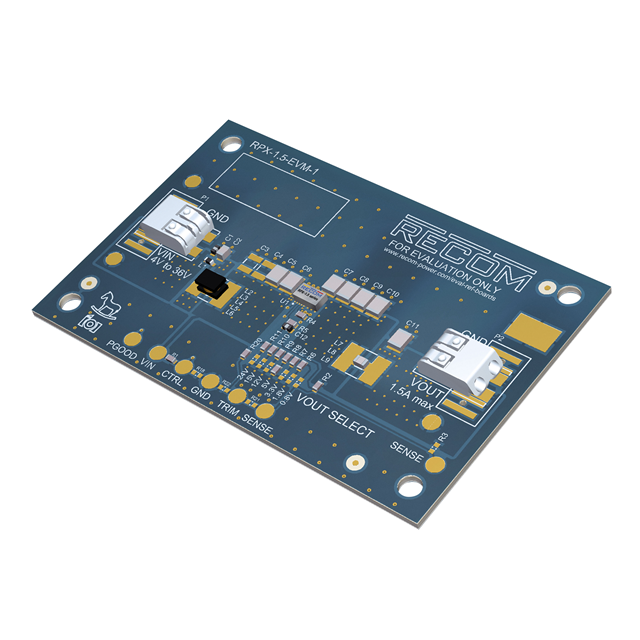

RPX-1.5-EVM-1

Active

RECOM Power

RPX-1.5 EVALUATION MODULE

Search across all available documentation for this part.

Active

RECOM Power

RPX-1.5 EVALUATION MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Supplier Device Package	Voltage - Input (Max) [Max]	Applications	Efficiency	Voltage - Output	Outputs and Type	Outputs and Type	Regulator Topology	Main Purpose	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Supplied Contents	Current - Output	Board Type
RECOM Power RPX-1.5-CT	1	Non-Isolated PoL Module	4 V	1.5 A	30 V	0.8 V	Surface Mount	16-PowerLFQFN Module	1.6 mm	0.12 "	0.2 in	3 mm	0.06 "	5 mm	16-QFN (5x3)	36 V	ITE (Commercial)	87 %
RECOM Power RPX-1.5-EVM-1																			0.8 V 1.8 V 3.3 V 5 V 12 V 15 VDC 24 V	Non-Isolated	7	Buck	DC/DC Step Down	RPX-1.5	4 V	36 V	Board(s)	1.5 A	Fully Populated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RPX-1.5 - DC/DC, Step Down 7, Non-Isolated Outputs Evaluation Board
