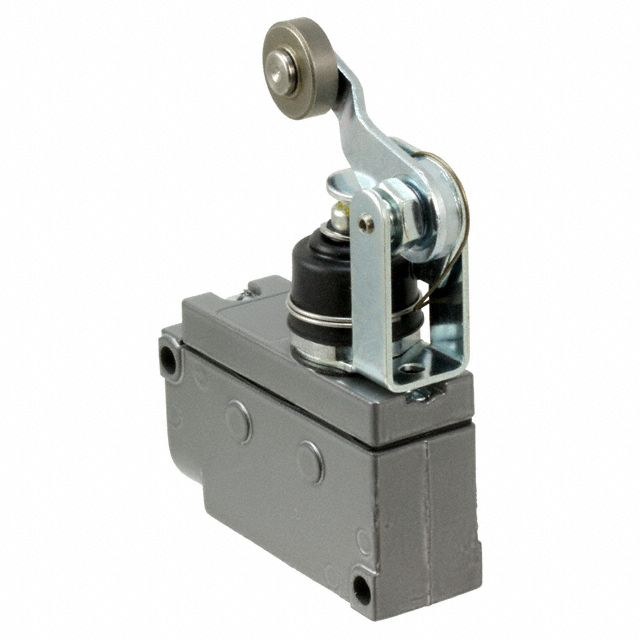

BZE7-2RN2-C

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	BZE7-2RN2-C

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	500 mA, 15 A
Differential Travel	0.15 mm
Differential Travel	0.006 in
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force [Max]	567 gf
Operating Force [Min]	283 gf
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-30 ░C
Overtravel	5.6 mm
Overtravel	0.219 in
Pretravel	0.188 in
Pretravel	4.8 mm
Release Force	170 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Pretravel	Pretravel	Mounting Type	Voltage Rating - DC	Release Force	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Voltage Rating - AC	Termination Style	Actuator Type	Differential Travel	Differential Travel	Ingress Protection	Overtravel	Overtravel	Operating Force	Operating Position	Operating Force [Min]	Operating Force [Max]
Honeywell Sensing and Control EMEA BZE7-2RN-C	0.078 "	2 mm	Chassis Mount	125 VDC	113 gf	On-Mom	15 A 500 mA	71 °C	-30 ░C	10000000 Cycles	SPDT	125 V	Screw Terminal	Round (Pin Plunger)	0.002 in	0.05 mm	IP65 - Dust Tight Water Resistant	5.6 mm	0.219 in
Honeywell Sensing and Control EMEA BZE7-2RN18-C	15 °		Chassis Mount	125 VDC		On-Mom	15 A 500 mA	71 °C	-30 ░C	10000000 Cycles	SPDT	125 V	Screw Terminal	Coil Spring			IP65 - Dust Tight Water Resistant			198 gf	15 °
Honeywell Sensing and Control EMEA BZE7-2RN2-C	0.188 in	4.8 mm	Chassis Mount	125 VDC	170 gf	On-Mom	15 A 500 mA	71 °C	-30 ░C	10000000 Cycles	SPDT	125 V	Screw Terminal	Lever Roller	0.006 in	0.15 mm	IP65 - Dust Tight Water Resistant	5.6 mm	0.219 in			283 gf	567 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 152.70

General part information

Switch SPDT Chassis Mount
