0015286061

Active

Molex

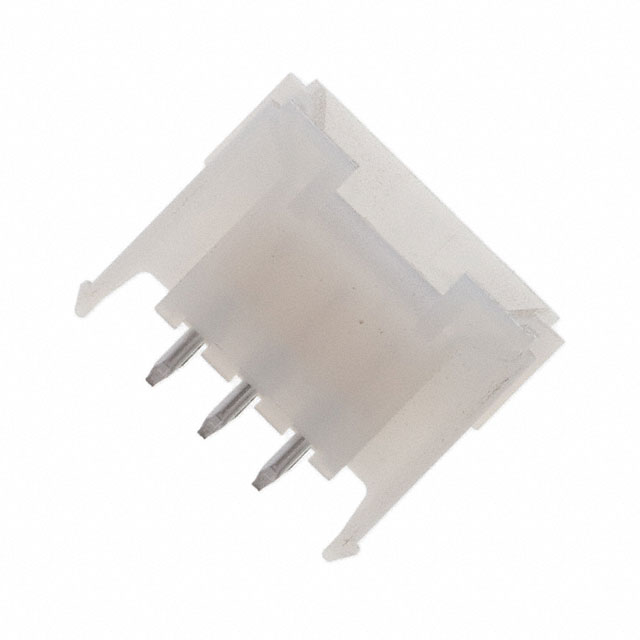

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

0015286061

Active

Molex

CONN HEADER VERT 6POS 4.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015286061

Applications	Industrial, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Blind Mating, Board Lock
Insulation Color	Natural
Insulation Height	14.1 mm
Insulation Height	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

001528 Series

Part	Style	Number of Positions	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Finish - Mating	Applications	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Type	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)
Molex 0015286182	Board to Board Cable	18	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286062	Board to Board Cable	6	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286310	Board to Board Cable	10	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	3 µin	0.076 µm	Shrouded - 4 Wall	Gold		4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder			Header	Through Hole	-40 °C	105 ░C	600 VAC	Varies by Wire Gauge
Molex 0015286042	Board to Board Cable	4	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286102	Board to Board Cable	10	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286142	Board to Board Cable	14	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286061	Board to Board Cable	6	2	All	14.1 mm	0.555 in	UL94 V-2	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286101	Board to Board Cable	10	2	All	14.1 mm	0.555 in	UL94 V-2	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286242	Board to Board Cable	24	2	All	14.1 mm	0.555 in	UL94 V-0	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole
Molex 0015286041	Board to Board Cable	4	2	All	14.1 mm	0.555 in	UL94 V-2	Natural	Brass	Solder	4.2 mm	0.165 in	30 Áin	0.76 Ám	Shrouded - 4 Wall	Gold	General Purpose Industrial Medical Telecommunications	4.2 mm	0.165 in	Blind Mating Board Lock	Tin	3.5 mm	0.138 in	Square	Male Pin	Polyamide (PA66) Nylon 6/6	Latch Holder	2.54 µm	100 µin	Header	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.51
		10	$ 1.91
		25	$ 1.73
		50	$ 1.61
		100	$ 1.51
		250	$ 1.39
		500	$ 1.31
		1000	$ 1.30

Description

General part information

001528 Series

Connector Header Through Hole 6 position 0.165" (4.20mm)
