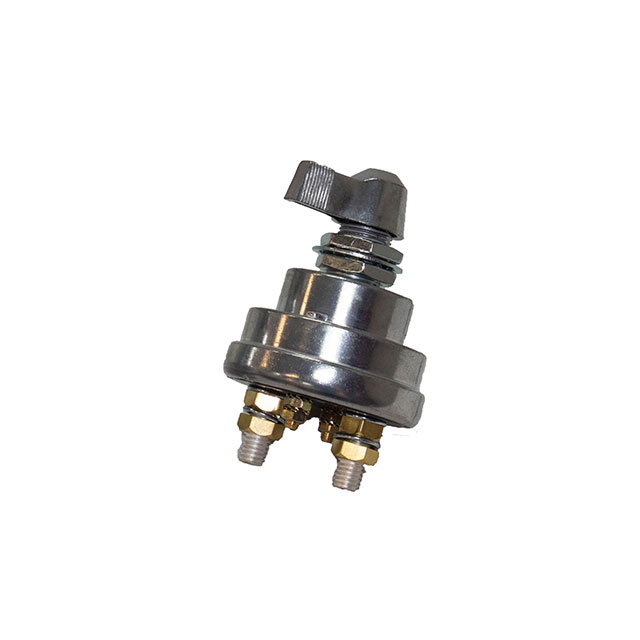

HDB3-2A-3-A
ActiveSwitch Components
SWITCH SELECT 2POS DPST 180A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDB3-2A-3-A
ActiveSwitch Components
SWITCH SELECT 2POS DPST 180A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB3-2A-3-A |
|---|---|
| Circuit | DPST |
| Current Rating (Amps) | 180 A |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Number of Positions | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 18.6 mm |
| Switch Function | On-Off |
| Termination Style | Stud |
| Type | Battery Disconnect |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.12 | |
| 10 | $ 50.70 | |||
| 25 | $ 46.29 | |||
| 50 | $ 40.50 | |||
| 100 | $ 37.51 | |||
| 250 | $ 34.50 | |||
| 500 | $ 31.64 | |||
| 1000 | $ 29.15 | |||
Description
General part information
HDB3-2A Series
Selector Switch 2 Position DPST 180A (DC) Panel Mount
