LZ4-20MD06-0000

Active

ams-OSRAM USA INC.

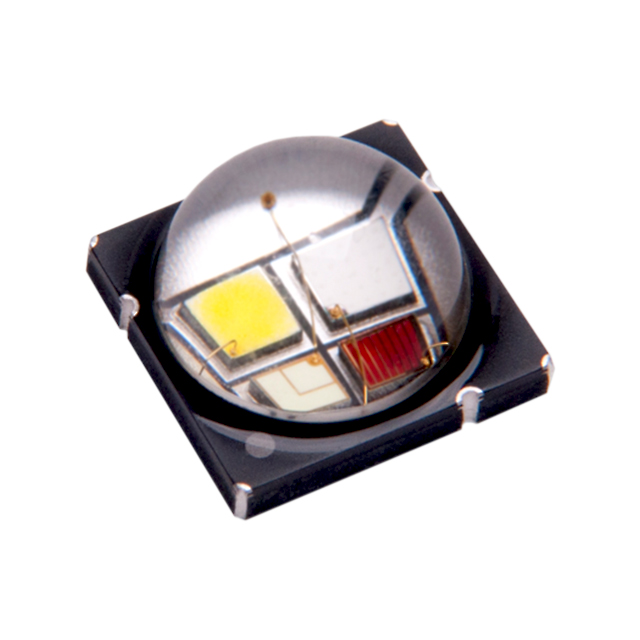

LED LZ4 RGBW 623/523/457/6500K

Deep-Dive with AI

Search across all available documentation for this part.

LZ4-20MD06-0000

Active

ams-OSRAM USA INC.

LED LZ4 RGBW 623/523/457/6500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LZ4-20MD06-0000

Color	Green, Blue, White, Red
Current - Max [Max]	3 A
Current - Test	1.2 A
Luminous Flux @ Current/Temperature [custom]	235 lm
Luminous Flux @ Current/Temperature [custom]	56 lm
Luminous Flux @ Current/Temperature [custom]	215 lm
Luminous Flux @ Current/Temperature [custom]	360 lm
Mounting Type	Surface Mount
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Wavelength	457nm Blue, 523nm Green, 623nm Red, 6500K White

LZ4-20 Series

Part	Height [z]	Lens Type	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Light Emitting Surface (LES) [diameter]	Type	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Configuration	Viewing Angle	Wavelength	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Size / Dimension [diameter]	Color	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test [custom]	Luminous Flux @ Current/Temperature [custom]	CCT (K)	Current - Max	Current - Max [Max]	Current - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type
ams-OSRAM USA INC. LZ4-20MA00-0000	5.6 mm	Domed	1 A	1 A	1 A	1 A	65 lm/W	45 lm/W	12 lm/W	75 lm/W	5.6 mm	LED Module	160 lm	30 lm	78 lm	115 lm	Starboard	95 °	457nm Blue 525nm Green 593nm Amber 624nm Red	2.2 V	3.5 V	3.5 V	2.5 V	700 mA	700 mA	700 mA	700 mA	19.9 mm	Amber Blue Green Red
ams-OSRAM USA INC. LZ4-20D108-0000
ams-OSRAM USA INC. LZ4-20MC00-0000	5.6 mm	Domed	1 A	1 A		1 A	59 lm/W		13 lm/W	75 lm/W	5.6 mm	LED Module					Starboard	95 °	457nm Blue 525nm Green 624nm Red	2.2 V	7 V	3.5 V			700 mA	700 mA	700 mA	19.9 mm	Blue Green Red	31 lm 115 lm 290 lm
ams-OSRAM USA INC. LZ4-20MD0C-0000	5.6 mm	Domed					62 lm/W		12 lm/W	61 lm/W	5.6 mm	LED Module	160 lm	30 lm		115 lm	Starboard	95 °	457nm Blue 525nm Green 624nm Red									19.9 mm	Blue Green Red White		75 lm/W	190 lm	6500 K	1A Blue 1A Green 1A Red 1A White
ams-OSRAM USA INC. LZ4-20MD06-0000													235 lm	56 lm		215 lm			457nm Blue 523nm Green 623nm Red 6500K White										Blue Green Red White			360 lm			3 A	1.2 A	7 mm	0.276 in	0.276 "	7 mm	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LZ4-20 Series

LED Lighting Color LZ4 Red, Green, Blue, White (RGBW) 623nm Red, 523nm Green, 457nm Blue, 6500K White
