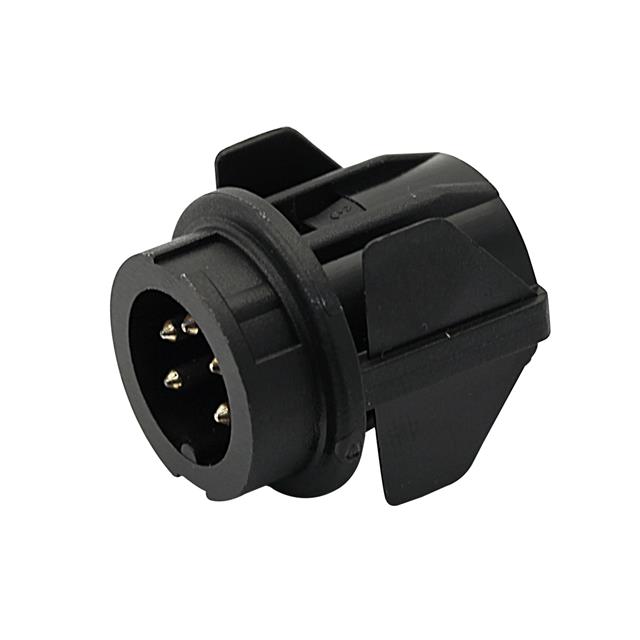

T3326500U

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 4P PNL MT SNAPIN

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCP HSG ML 4P PNL MT SNAPIN

Technical Specifications

Parameters and characteristics for this part

Specification	T3326500U

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-4
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Shell Size - Insert	Material Flammability Rating	Mounting Type	Note	Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Insert Material	Housing Color	Orientation	Connector Type	Shell Material	Contact Type	Contact Size	Ingress Protection	Contact Shape
Amphenol Tuchel Industrial T3326500U	Unshielded	M16-4	UL94 V-0	Panel Mount Snap-In	Contacts Not Included	For Male Pins	100 °C	-40 °C	Bayonet Lock	4	Thermoplastic	Black	Keyed	Receptacle Housing	Plastic	Crimp	1.5 mm	IP40	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount, Snap-In
