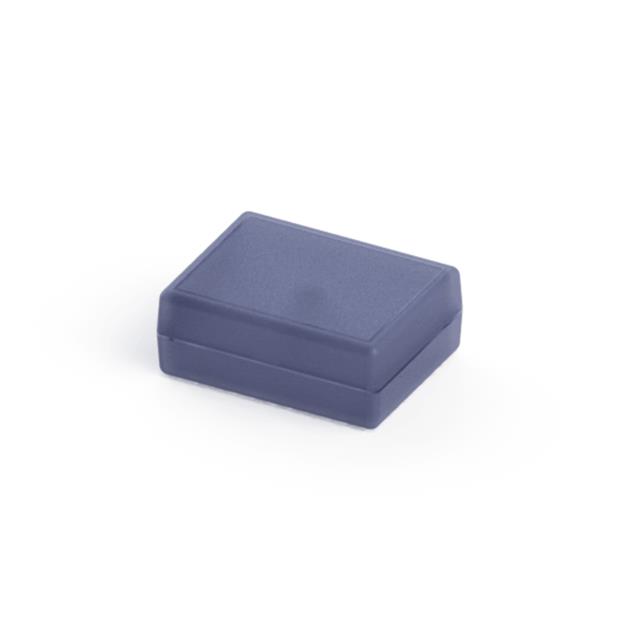

C8,TRGY
ActiveSerpac
BOX ABS TRN GRAY 2.4"L X 1.85"W
Deep-Dive with AI
Search across all available documentation for this part.
C8,TRGY
ActiveSerpac
BOX ABS TRN GRAY 2.4"L X 1.85"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8,TRGY |
|---|---|
| Area (L x W) | 4.44 in² |
| Area (L x W) | 28.6 cm² |
| Color | Translucent - Gray |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Height [z] | 23.62 mm |
| Height [z] | 0.93 " |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40 |
| Size / Dimension [x] | 60.96 mm |
| Size / Dimension [x] | 2.4 " |
| Size / Dimension [y] | 1.85 " |
| Size / Dimension [y] | 46.99 mm |
| Thickness | 1.52 mm |
| Thickness | 0.06 in |
| Weight | 15.88 g |
| Weight | 0.035 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.88 | |
| 5 | $ 5.53 | |||
| 10 | $ 5.30 | |||
| 25 | $ 5.13 | |||
| 50 | $ 5.06 | |||
| 100 | $ 5.02 | |||
| 250 | $ 4.99 | |||
| 500 | $ 4.98 | |||
| 1000 | $ 4.97 | |||
Description
General part information
C8 Series
Box Plastic, ABS Translucent - Gray Hand Held, Split Sides 2.400" L x 1.850" W (60.96mm x 46.99mm) X 0.930" (23.62mm)
Documents
Technical documentation and resources
No documents available
