OSTNR161101

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR161101

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.425 in
Insulation Height	10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	16
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	150 V

Part	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Pitch [x]	Pitch [x]	Positions Per Level	Type	Current - UL	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Contact Mating Finish	Material Flammability Rating	Features	Color	Contact Material	Number of Levels	Number of Positions	Voltage - UL	Header Orientation
On Shore Technology Inc. OSTNR161200	Solder	Through Hole	-40 °C	115 °C	Liquid Crystal Polymer (LCP)	3.5 mm	0.138 in	8	Header Male Pins Shrouded (4 Side)	8 A	11.6 mm	0.457 in	0.079 in	2 mm	Tin	UL94 V-0	Mating Flange	Black	Copper	2	16	300 V	Vertical
On Shore Technology Inc. OSTNR161201	Solder	Through Hole	-40 °C	115 °C	Liquid Crystal Polymer (LCP)	3.5 mm	0.138 in	8	Header Male Pins Shrouded (4 Side)	8 A	10.8 mm	0.425 in	0.079 in	2 mm	Tin	UL94 V-0	Mating Flange	Black	Copper	2	16	150 V	90° Right Angle
On Shore Technology Inc. OSTNR161100	Solder	Through Hole	-40 °C	115 °C	Liquid Crystal Polymer (LCP)	3.5 mm	0.138 in	8	Header Male Pins Shrouded (4 Side)	8 A	11.6 mm	0.457 in	0.079 in	2 mm	Tin	UL94 V-0		Black	Copper	2	16	300 V	Vertical
On Shore Technology Inc. OSTNR161101	Solder	Through Hole	-40 °C	115 °C	Liquid Crystal Polymer (LCP)	3.5 mm	0.138 in	8	Header Male Pins Shrouded (4 Side)	8 A	10.8 mm	0.425 in	0.079 in	2 mm	Tin	UL94 V-0		Black	Copper	2	16	150 V	90° Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

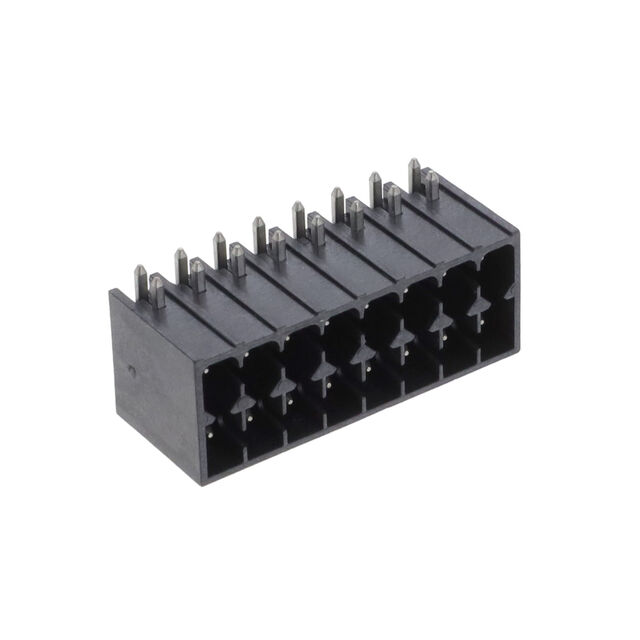

16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
