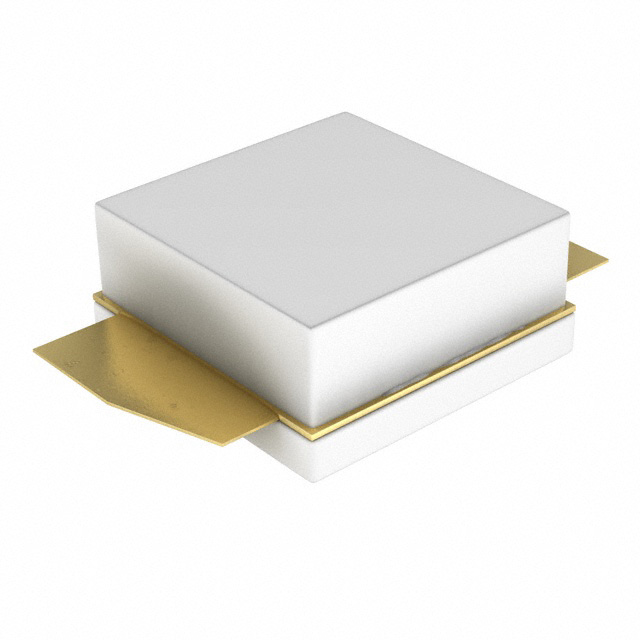

BLF6G38S-25,118

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Technical Specifications

Parameters and characteristics for this part

Part	Gain	Current Rating (Amps)	Frequency [Min]	Frequency [Max]	Voltage - Rated	Supplier Device Package	Current - Test	Power - Output	Mounting Type	Voltage - Test	Package / Case
Ampleon USA Inc. BLF6G38LS-50,112	14 dBi	16.5 A	3.4 GHz	3.6 GHz	65 V	SOT502B	450 mA	9 W	Chassis Mount	28 V	SOT-502B
Ampleon USA Inc. BLF6G38-100,112	13 dBi	34 A	3.4 GHz	3.6 GHz	65 V	SOT502A	1.05 A	18.5 W	Chassis Mount	28 V	SOT-502A
Ampleon USA Inc. BLF6G38-10,118	14 dBi	3.1 A	3.4 GHz	3.6 GHz	65 V	CDFM2	130 mA	2 W	Chassis Mount	28 V	SOT-975B
Ampleon USA Inc. BLF6G38-50,112	14 dBi	16.5 A	3.4 GHz	3.6 GHz	65 V	SOT502A	450 mA	9 W	Chassis Mount	28 V	SOT-502A
Ampleon USA Inc. BLF6G38S-25,112	15 dB		3.4 GHz	3.6 GHz	65 V	CDFM2	225 mA	4.5 W	Chassis Mount	28 V	SOT-608B
Ampleon USA Inc. BLF6G38-10G,118	14 dBi	3.1 A	3.4 GHz	3.6 GHz	65 V	CDFM2	130 mA	2 W	Surface Mount	28 V	SOT-975C
Ampleon USA Inc. BLF6G38-10,112	14 dBi	3.1 A	3.4 GHz	3.6 GHz	65 V	CDFM2	130 mA	2 W	Chassis Mount	28 V	SOT-975B
Ampleon USA Inc. BLF6G38-50,135	14 dBi	16.5 A	3.4 GHz	3.6 GHz	65 V	SOT502A	450 mA	9 W	Chassis Mount	28 V	SOT-502A
Ampleon USA Inc. BLF6G38LS-100,112	13 dBi	34 A	3.4 GHz	3.6 GHz	65 V	SOT502B	1.05 A	18.5 W	Chassis Mount	28 V	SOT-502B
Ampleon USA Inc. BLF6G38S-25,118	15 dB		3.4 GHz	3.6 GHz	65 V	CDFM2	225 mA	4.5 W		28 V	SOT-608B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 225 mA 3.4GHz ~ 3.6GHz 15dB 4.5W CDFM2

Technical documentation and resources
