TMC248-LA

Obsolete

Analog Devices Inc./Maxim Integrated

IC MTR DRVR BIPOLAR 3-5.5V 28QFN

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC MTR DRVR BIPOLAR 3-5.5V 28QFN

Technical Specifications

Parameters and characteristics for this part

Specification	TMC248-LA

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	SPI
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Pre-Driver - Half Bridge (4)

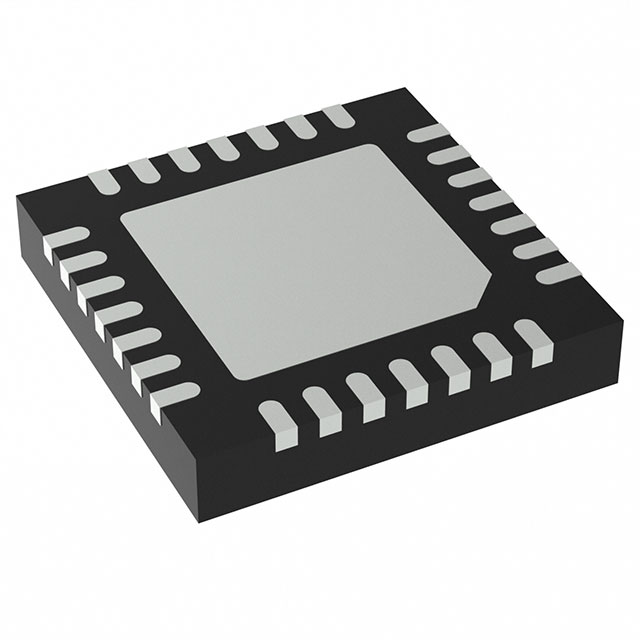

Package / Case	28-VFQFN Exposed Pad
Step Resolution [Max]	0.015625
Step Resolution [Min]	1
Supplier Device Package	28-QFN (5x5)
Technology	HVCMOS
Voltage - Load [Max]	34 V
Voltage - Load [Min]	7 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Applications	Step Resolution [Max]	Step Resolution [Min]	Technology	Supplier Device Package	Mounting Type	Motor Type - Stepper	Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Interface	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
Analog Devices Inc./Maxim Integrated TMC248-LA-X	General Purpose	0.015625	1	HVCMOS	28-QFN (5x5)	Surface Mount	Bipolar	Controller - Commutation Direction Management	150 °C	-40 °C	7 V	34 V	SPI	Pre-Driver - Half Bridge (4)	5.5 V	3 V	28-VFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated TMC248-LA	General Purpose	0.015625	1	HVCMOS	28-QFN (5x5)	Surface Mount	Bipolar	Controller - Commutation Direction Management	150 °C	-40 °C	7 V	34 V	SPI	Pre-Driver - Half Bridge (4)	5.5 V	3 V	28-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver HVCMOS SPI 28-QFN (5x5)
