732ACF

Active

Switchcraft Inc.

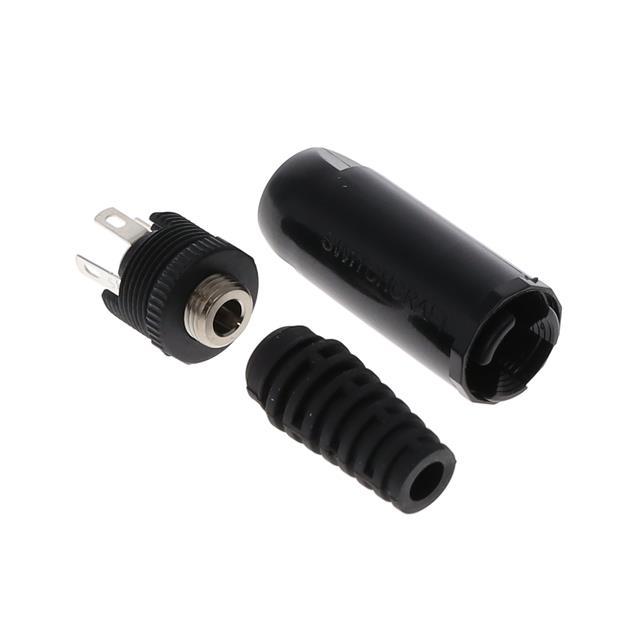

DC POWER JACK, IN-LINE, 1.3MM, S

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 1.3MM, S

Technical Specifications

Parameters and characteristics for this part

Specification	732ACF

Actual Diameter	1.2 mm
Actual Diameter	0.047 "
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Features	Strain Relief
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	1.2 mm
Industry Recognized Mating Diameter [diameter]	0.047 in
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Contact Material - Plating	Number of Positions/Contacts	Features	Contact Material	Shielding	Mounting Type	Insulation Color	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Color	Gender	Current Rating (Amps)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Housing Material	Voltage - Rated	Actual Diameter	Actual Diameter	Body Material
Switchcraft Inc. 732ACF	Tin	2 Conductors 3 Conductors	Strain Relief	Copper Alloy	Unshielded	Free Hanging (In-Line)	Black	Solder Eyelet(s)	Jack	-40 °C	105 ░C	Black Silver	Male	5 A	1.2 mm	0.047 in	Thermoplastic	24 VDC	1.2 mm	0.047 "	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 1.20mm ID (0.047") Free Hanging (In-Line)
