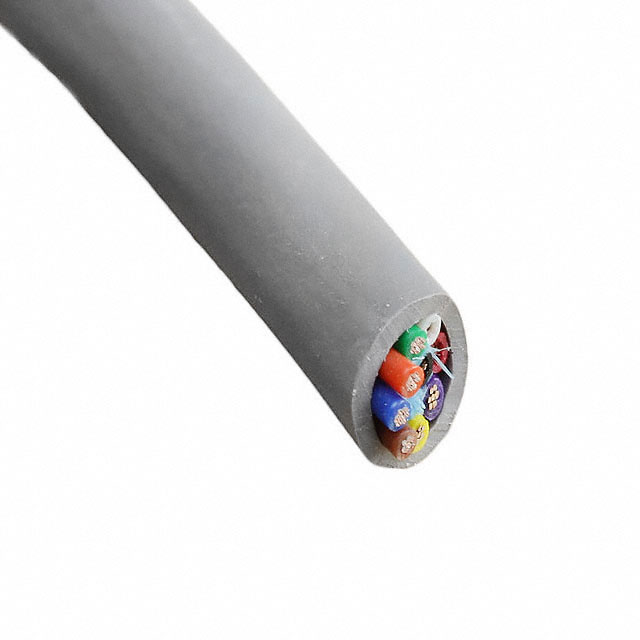

M39030 SL001
ActiveALPHA WIRE
CABLE 9COND 24AWG SHLD 1000'
Deep-Dive with AI
Search across all available documentation for this part.
M39030 SL001
ActiveALPHA WIRE
CABLE 9COND 24AWG SHLD 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M39030 SL001 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter | 5.79 mm |
| Jacket (Insulation) Diameter | 0.228 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 9 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2464 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 779.17 | |
Description
General part information
M39030 Series
9 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
