BA5406

Obsolete

Rohm Semiconductor

IC AMP CLASS AB STEREO 5W 12SIP

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC AMP CLASS AB STEREO 5W 12SIP

Technical Specifications

Parameters and characteristics for this part

Specification	BA5406

Features	Depop
Max Output Power x Channels @ Load	3 Ohm
Max Output Power x Channels @ Load [x]	2, 5 W
Mounting Type	Through Hole
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 °C
Output Type	2-Channel (Stereo)

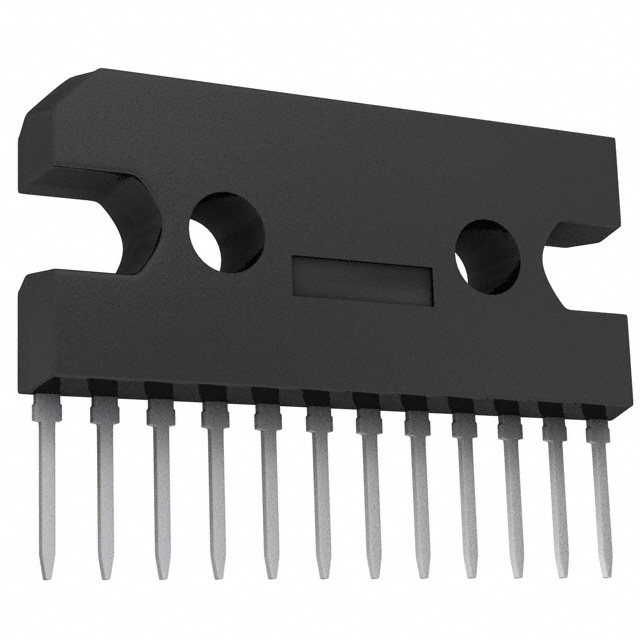

Package / Case	12-SIP
Supplier Device Package	12-SIP-M
Type	Class AB
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	5 V

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Features	Type	Mounting Type	Package / Case	Supplier Device Package
Rohm Semiconductor BA5406	2-Channel (Stereo)	75 °C	-20 °C	5 V	15 V	2 5 W	3 Ohm	Depop	Class AB	Through Hole	12-SIP	12-SIP-M
