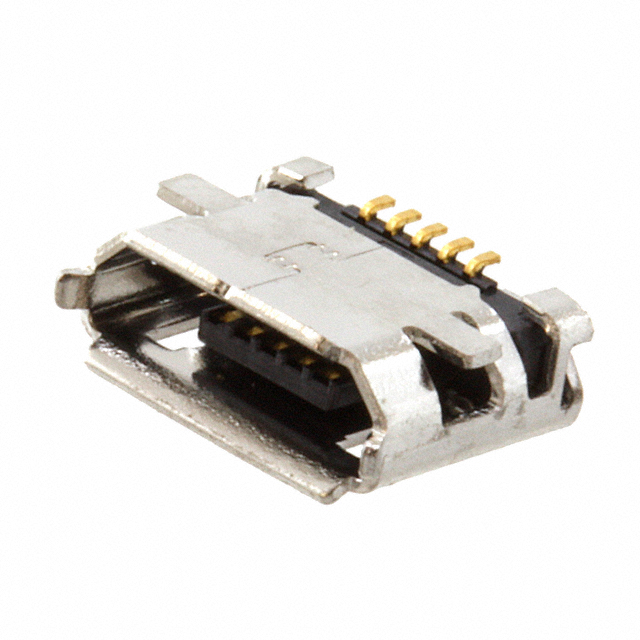

UB-MC5BR3-SD204-4S-1-TB NMP
ActiveJST Sales America Inc.
CONN RCP MICRO USB B 5POS SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UB-MC5BR3-SD204-4S-1-TB NMP |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1 A, 0.5 A, 1.8 A |
| Features | Solder Retention |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.89 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| Tape & Reel (TR) | 3000 | $ 0.53 | ||
| 6000 | $ 0.51 | |||
| 9000 | $ 0.48 | |||
| 15000 | $ 0.47 | |||
Description
General part information
UB-MC5BR Series
USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
