H4PXS-4036M
ActiveAssmann WSW Components
DIP CABLE - HDP40S/AE40M/X
Deep-Dive with AI
Search across all available documentation for this part.
H4PXS-4036M
ActiveAssmann WSW Components
DIP CABLE - HDP40S/AE40M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H4PXS-4036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | DIP to Cable |
| Contact Finish | Tin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.6") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.37 | |
| 10 | $ 7.57 | |||
| 25 | $ 7.15 | |||
| 50 | $ 6.97 | |||
| 100 | $ 6.62 | |||
| 250 | $ 5.93 | |||
| 500 | $ 5.58 | |||
| 1000 | $ 4.88 | |||
Description
General part information
H4PXS-40 Series

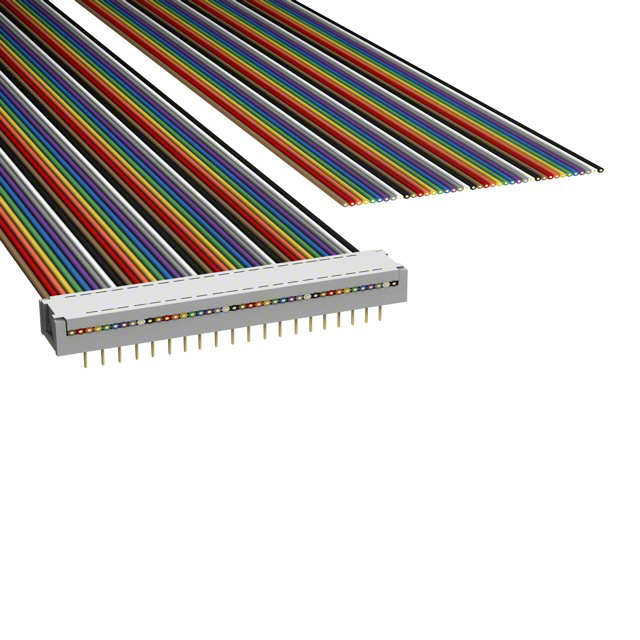

40 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
