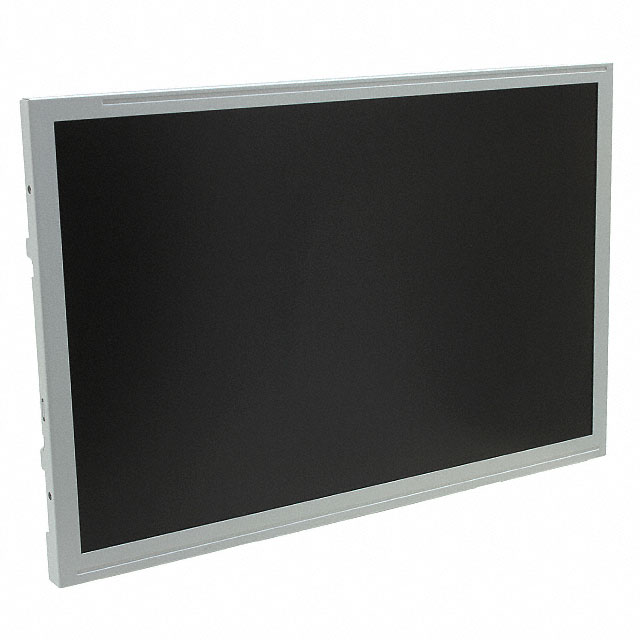

TCG101WXLPAANN-AN20
ActiveKyocera International, Inc.
LCD TFT 10.1" WXGA 500NITS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCG101WXLPAANN-AN20
ActiveKyocera International, Inc.
LCD TFT 10.1" WXGA 500NITS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCG101WXLPAANN-AN20 |
|---|---|
| Backlight | LED - White |
| Diagonal Screen Size [custom] | 256.54 mm |
| Diagonal Screen Size [custom] | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [y] | 0.06 mm |
| Dot Pitch [z] | 0.17 mm |
| Dot Pixels [x] | 1280 |
| Dot Pixels [y] | 800 |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [x] | 216.96 mm |
| Viewing Area [y] | 135.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 223.34 | |
| 10 | $ 214.75 | |||
Description
General part information
TCG101 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 10.1" (256.54mm) 1280 x 800 (WXGA1)
Documents
Technical documentation and resources
