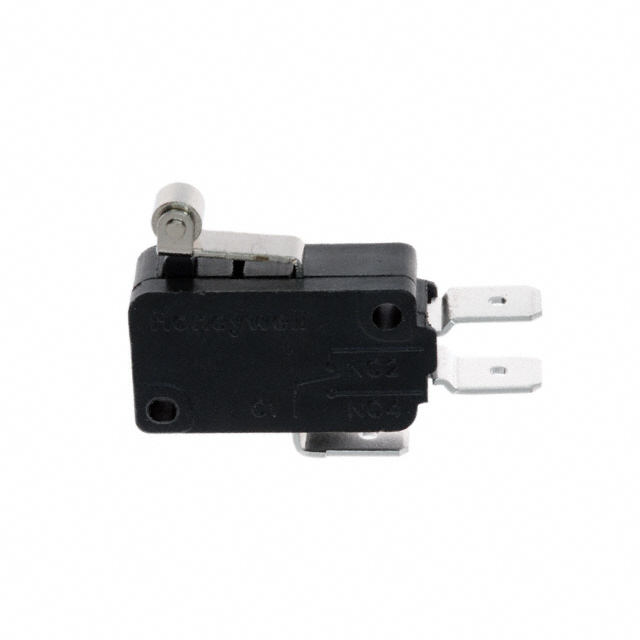

V15H16-CZ300A05-K
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 16A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V15H16-CZ300A05-K |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 350 gf |
| Operating Position | 0.812 in |
| Operating Position | 20.6 mm |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.76 mm |
| Overtravel | 0.03 in |
| Pretravel | 0.063 in |
| Pretravel | 1.6 mm |
| Release Force | 60 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.23 | |
| 10 | $ 2.68 | |||
| 25 | $ 2.49 | |||
| 40 | $ 2.39 | |||
| 80 | $ 2.26 | |||
| 230 | $ 2.08 | |||
| 440 | $ 1.97 | |||
| 945 | $ 1.85 | |||
Description
General part information
V15H16 Series
Switch SPDT Chassis Mount
