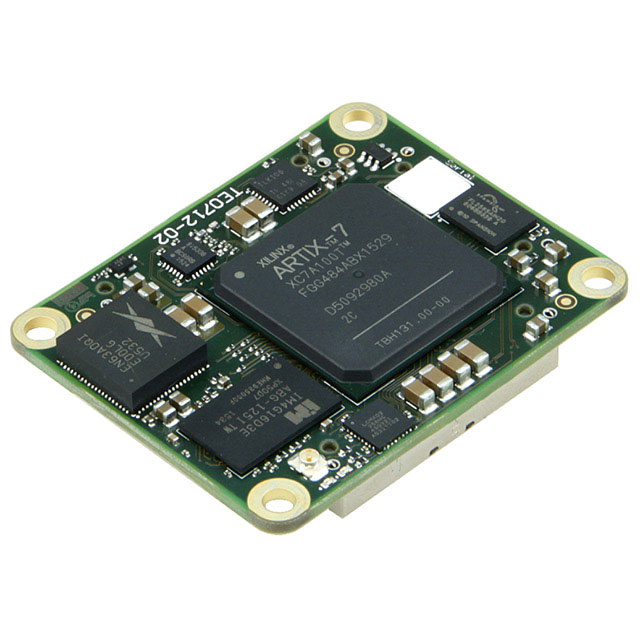

TE0712-02-100-2C3

Obsolete

Trenz Electronic

IC MOD ARTIX7 A100T 200MHZ 1GB

Search across all available documentation for this part.

Obsolete

Trenz Electronic

IC MOD ARTIX7 A100T 200MHZ 1GB

Technical Specifications

Parameters and characteristics for this part

Part	Speed	RAM Size	Module/Board Type	Core Processor	Flash Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Trenz Electronic TE0712-02-200-1I	200 MHz	1 GB	FPGA Core	Artix-7 A200T	32 MB	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	85 °C	-40 °C
Trenz Electronic TE0712-02-100-1I	200 MHz	1 GB	FPGA Core	Artix-7 A100T	32 MB	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	85 °C	-40 °C
Trenz Electronic TE0712-02-100-2C3	200 MHz	1 GB	FPGA Core	Artix-7 A100T	32 MB	50 mm	1.97 "	40 mm	1.57 "	Samtec LSHM	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TE0712 Embedded Module Artix-7 A100T 200MHz 1GB 32MB

Technical documentation and resources

No documents available
