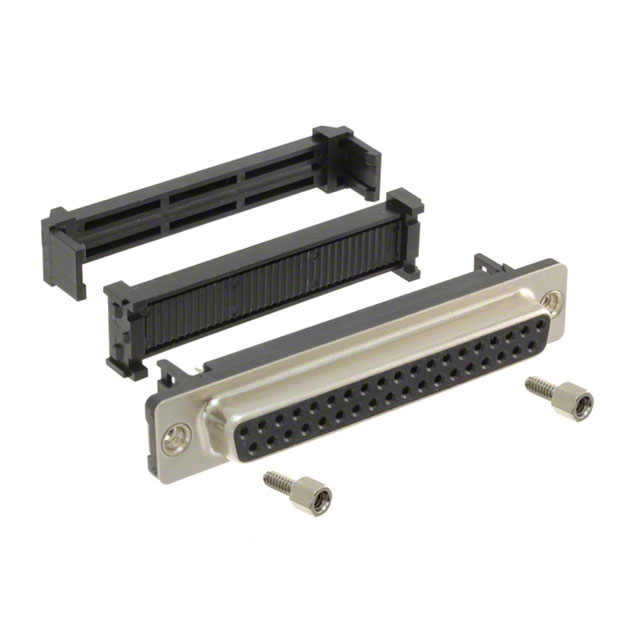

410F0-37-1-004S

Active

CnC Tech, LLC

CONN D-SUB RCPT 37POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB RCPT 37POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	410F0-37-1-004S

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Contact Material	Termination	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Flange Feature	Connector Style	Voltage Rating	Contact Type	Shell Size, Connector Layout	Shell Material, Finish	Number of Rows	Number of Positions	Contact Finish	Features	Material Flammability Rating
CnC Tech, LLC 410F0-37-1-00	Brass	IDC Ribbon Cable	Receptacle Female Sockets	Free Hanging (In-Line)	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	D-Sub	250 VDC	Signal	4 (DC C)	Nickel Plated Steel	2	37	Gold	Feed Through	UL94 V-0
CnC Tech, LLC 410F0-37-1-004S	Brass	IDC Ribbon Cable	Receptacle Female Sockets	Free Hanging (In-Line)	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	D-Sub	250 VDC	Signal	4 (DC C)	Nickel Plated Steel	2	37	Gold	Feed Through Strain Relief	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
