LI98C-320-320-0.2

Active

t-Global Technology

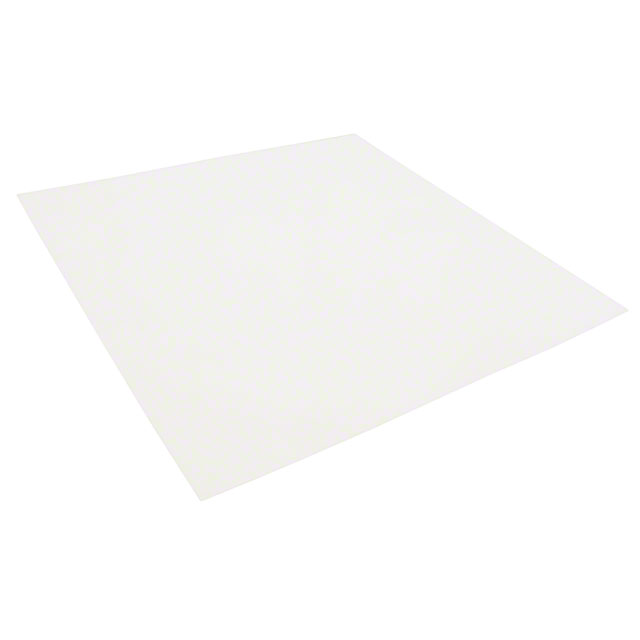

THERM PAD 320X320MM W/ADH WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Thermal Pad Tolerance +1

LI98C-320-320-0.2

Active

t-Global Technology

THERM PAD 320X320MM W/ADH WHT

Deep-Dive with AI

DocumentsDatasheet Thermal Pad Tolerance +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LI98C-320-320-0.2

Adhesive	Adhesive - Both Sides
Backing, Carrier	Fiberglass
Color	White
Material	Acrylic Elastomer
Outline [x]	320 mm
Outline [y]	320 mm
Shape	Square
Shelf Life	12 Months
Shelf Life Start	Date of Purchase
Thermal Conductivity	1.9 W/m-K
Thickness	0.008 in
Thickness	0.203 mm
Type	Tape, Roll

LI98C Series

Part	Material	Shelf Life	Type	Thermal Conductivity	Thickness	Thickness	Shelf Life Start	Outline [y]	Outline [x]	Shape	Backing, Carrier	Adhesive	Color	Thickness [custom]	Thickness [custom]
t-Global Technology LI98C-300-300-0.2	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K	0.008 in	0.203 mm	Date of Purchase	300 mm	300 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98CN-300-300-0.18	Acrylic Elastomer	12 Months	Roll Tape	2.1 W/m-K	0.007 in	0.178 mm	Date of Purchase	300 mm	300 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98C-50M-320-0.25	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K			Date of Purchase	320 mm	50 m	Rectangular	Fiberglass	Adhesive - Both Sides	White	0.254 mm	0.01 in
t-Global Technology LI98C-50M-320-0.15	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K	0.006 in	0.152 mm	Date of Purchase	320 mm	50 m	Rectangular	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98C-100-100-0.2	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K	0.008 in	0.203 mm	Date of Purchase	100 mm	100 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98CN-320-320-0.18	Acrylic Elastomer	12 Months	Roll Tape	2.1 W/m-K	0.007 in	0.178 mm	Date of Purchase	320 mm	320 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98CN-150-150-0.18	Acrylic Elastomer	12 Months	Roll Tape	2.1 W/m-K	0.007 in	0.178 mm	Date of Purchase	150 mm	150 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98C-150-150-0.2	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K	0.008 in	0.203 mm	Date of Purchase	150 mm	150 mm	Square	Fiberglass	Adhesive - Both Sides	White
t-Global Technology LI98C-320-320-0.2	Acrylic Elastomer	12 Months	Roll Tape	1.9 W/m-K	0.008 in	0.203 mm	Date of Purchase	320 mm	320 mm	Square	Fiberglass	Adhesive - Both Sides	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.43
		10	$ 25.81
		25	$ 24.20
		50	$ 22.59
		100	$ 21.78
		250	$ 20.57
