T 3302 009

Active

Amphenol Tuchel Industrial

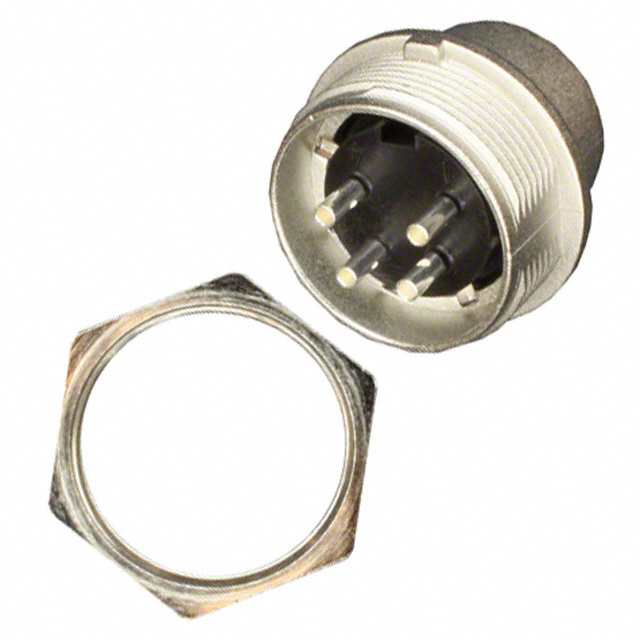

CONN RCPT MALE 4P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 4P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Voltage Rating	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Current Rating (Amps)	Primary Material	Shielding	Shell Finish	Orientation	Color	Connector Type	Contact Finish - Mating	Ingress Protection	Housing Color	Type	Insert Material	Note	Contact Type	Material Flammability Rating	Contact Size	Mounting Feature	Contact Shape
Amphenol Tuchel Industrial T 3302 018	4	250 VDC	Die Cast	100 °C	-40 °C	M16-4	10 A	Metal	Shielded	Nickel	Keyed	Silver	Male Pins Receptacle	Gold	IP40
Amphenol Tuchel Industrial T 3302 550	4		Die Cast	100 °C	-40 °C	M16-4			Shielded	Nickel	Keyed		Receptacle Housing		IP40	Silver	For Male Pins	Thermoplastic	Contacts Not Included	Crimp	UL94 V-0	1.5 mm	Bulkhead - Rear Side Nut	Circular
Amphenol Tuchel Industrial T 3302 009	4	250 VDC	Die Cast	100 °C	-40 °C	M16-4	10 A	Metal	Shielded	Nickel	Keyed	Silver	Male Pins Receptacle	Silver	IP40								Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.69

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
