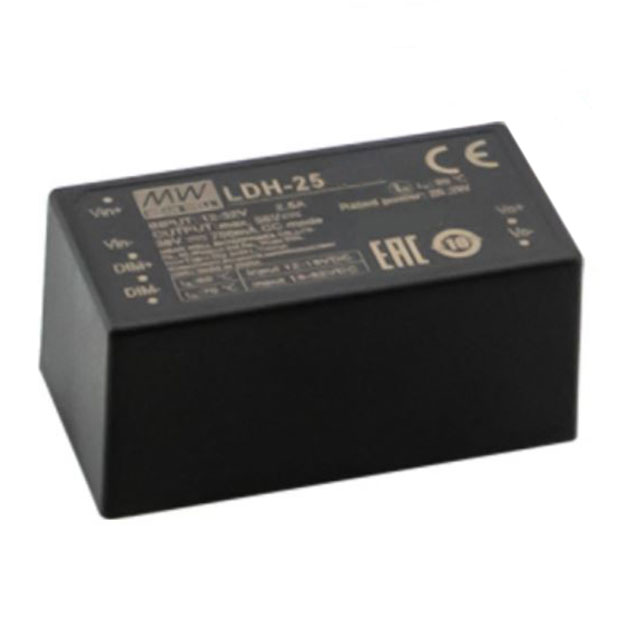

LDH-25-700

Active

MEAN WELL USA Inc.

LED DRIVER CC BST 12.5-36V 700MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC BST 12.5-36V 700MA

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Features	Topology	Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Dimming	Voltage - Input (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Package / Case	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style
MEAN WELL USA Inc. LDH-25-350	1	OVP SCP	Boost	Constant Current	350 mA	-40 °C	70 °C	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	25 W	Analog PWM	32 V	95 %	9.5 V	Through Hole	CE EAC	6-DIP Module	72 V	12.5 V
MEAN WELL USA Inc. LDH-25-700W	1	OVP SCP	Boost	Constant Current	700 mA	-40 °C	70 °C	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	25 W	Analog PWM	32 V	95.5 %	9.5 V	Chassis Mount	CE EAC		36 V	12.5 V	Wire Leads
MEAN WELL USA Inc. LDH-25-700	1	OVP SCP	Boost	Constant Current	700 mA	-40 °C	70 °C	27.2 mm	1.07 in	52.4 mm	24 mm	2.06 in	0.94 in	25 W	Analog PWM	32 V	95.5 %	9.5 V	Through Hole	CE EAC	6-DIP Module	36 V	12.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.76

General part information

700mA 12.5 ~ 36V Constant Current LED Driver Boost Topology 1 Output
