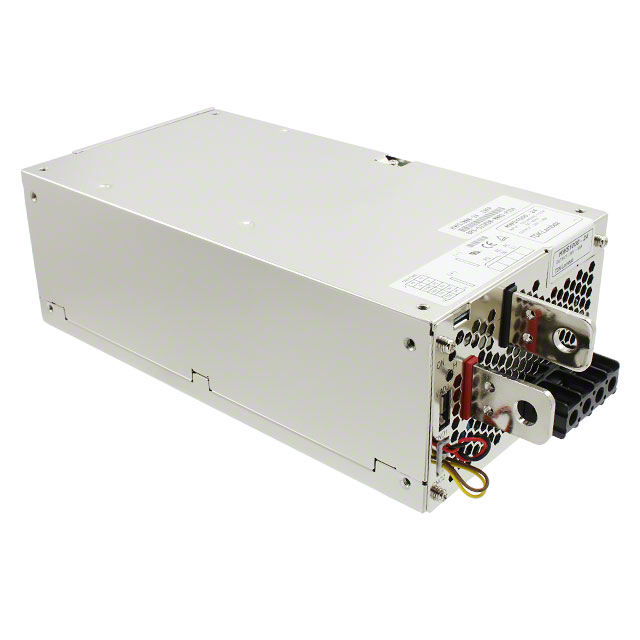

HWS1000L-36/BAT

Active

TDK-LAMBDA

BATT CHARGER ENCLOSED 36V 29A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HWS1000L-36/BAT

Active

TDK-LAMBDA

BATT CHARGER ENCLOSED 36V 29A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HWS1000L-36/BAT

Approval Agency	CE
Battery Chemistry	Lead Acid
Charge Current - Max [Max]	29 A
Features	Remote On/Off, Remote Sense, Universal Input, Adjustable Output, DC Input Capable, Load Sharing
Mounting Type	Desktop
Number of Cells	1
Operating Temperature [Max]	74 °C
Operating Temperature [Min]	-20 C
Power - Max [Max]	1000 W
Size / Dimension [x]	9.45 "
Size / Dimension [x]	240 mm
Size / Dimension [y]	150 mm
Size / Dimension [y]	5.91 in
Size / Dimension [z]	2.4 in
Size / Dimension [z]	61 mm
Type	Enclosed
Voltage - Nominal	36 V
Weight	2300 g

HWS1000 Series

Switching Power Supplies 1055W 36V 29.3A

Part	Power (Watts)	Approval Agency	Applications	Voltage - Isolation	Voltage - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1 [custom]	Efficiency	Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Charge Current - Max [Max]	Battery Chemistry	Number of Cells	Power - Max [Max]	Size / Dimension [y]	Size / Dimension [z]	Weight	Voltage - Nominal
TDK-LAMBDA HWS1000-48	1 kW	CE	ITE (Commercial)	3000 V	48 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm	28 A	88 %	Enclosed	1	85 VAC	265 VAC
TDK-LAMBDA HWS1000-36/HD	1 kW	CE	ITE (Commercial)	3000 V	36 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		88 %	Conformal Coated Enclosed	1	85 VAC	265 VAC	30.7 A
TDK-LAMBDA HWS1000-24	1 kW	CE	ITE (Commercial)	3000 V	24 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		87 %	Enclosed	1	85 VAC	265 VAC	46 A
TDK-LAMBDA HWS1000-6	1 kW	CE	ITE (Commercial)	3000 V	6 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		81 %	Enclosed	1	85 VAC	265 VAC	167 A
TDK-LAMBDA HWS1000-48/HD	1 kW	CE	ITE (Commercial)	3000 V	48 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm	28 A	88 %	Conformal Coated Enclosed	1	85 VAC	265 VAC
TDK-LAMBDA HWS1000-3/HD	1 kW	CE	ITE (Commercial)	3000 V	3 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		73 %	Conformal Coated Enclosed	1	85 VAC	265 VAC	200 A
TDK-LAMBDA HWS1000-60/HD	1 kW	CE	ITE (Commercial)	3000 V	60 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		88 %	Conformal Coated Enclosed	1	85 VAC	265 VAC	18 A
TDK-LAMBDA HWS1000-6/HD	1 kW	CE	ITE (Commercial)	3000 V	6 V	Chassis Mount	-10 °C	70 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5 "	3.25 "	240 mm	9.45 "	127 mm	82.6 mm		81 %	Conformal Coated Enclosed	1	85 VAC	265 VAC	167 A
TDK-LAMBDA HWS1000L-60/BAT		CE				Desktop	-20 C	74 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5.91 in	2.4 in	240 mm	9.45 "					Enclosed					17 A	Lead Acid	1	1000 W	150 mm	61 mm	2300 g	60 V
TDK-LAMBDA HWS1000L-36/BAT		CE				Desktop	-20 C	74 °C	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	5.91 in	2.4 in	240 mm	9.45 "					Enclosed					29 A	Lead Acid	1	1000 W	150 mm	61 mm	2300 g	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1294.49

Description

General part information

HWS1000 Series

Switching Power Supplies 1055W 36V 29.3A
