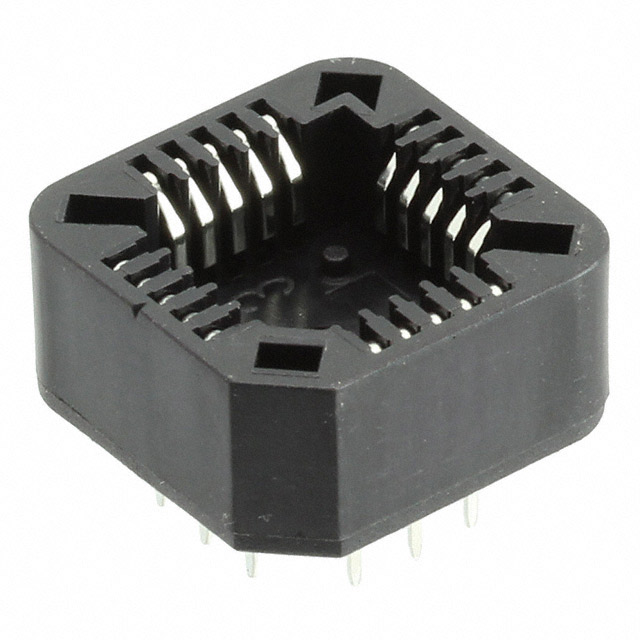

ED020PLCZ

Active

On Shore Technology Inc.

CONN SOCKET PLCC 20POS TIN

Search across all available documentation for this part.

Active

On Shore Technology Inc.

CONN SOCKET PLCC 20POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	ED020PLCZ

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	5
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.118 in
Termination Post Length	3 mm
Type	PLCC

Part	Mounting Type	Pitch - Post	Pitch - Post	Contact Material - Mating	Contact Material - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Resistance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Type	Termination Post Length	Termination Post Length	Housing Material	Termination
On Shore Technology Inc. ED020PLCZ	Through Hole	2.54 mm	0.1 in	Phosphor Bronze	Phosphor Bronze	0.1 in	2.54 mm	Tin	30 mOhm	Closed Frame	105 ░C	-55 °C	UL94 V-0	5	20	4	1 A	PLCC	0.118 in	3 mm	Polybutylene Terephthalate (PBT)	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 (4 x 5) Pos PLCC Socket Tin Through Hole
