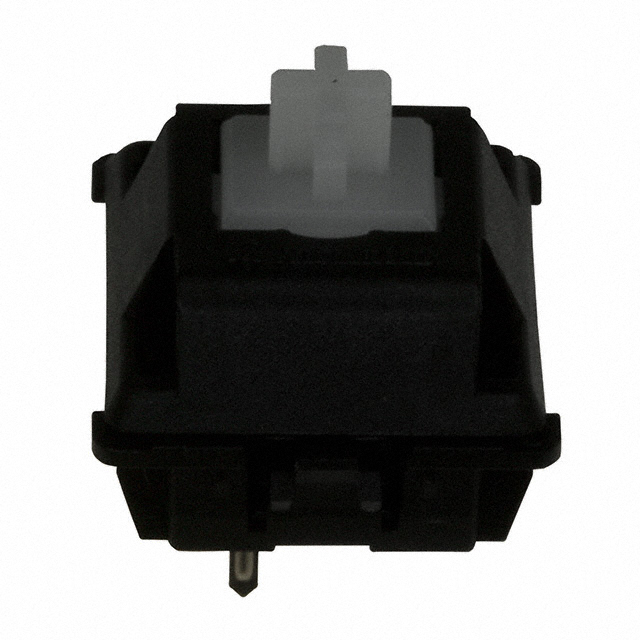

MX1A-C1NN

Active

Cherry Americas LLC

SWITCH PUSH SPST-NO 0.01A 12V

Search across all available documentation for this part.

Active

Cherry Americas LLC

SWITCH PUSH SPST-NO 0.01A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	MX1A-C1NN

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	10 mA
Electrical Life	20000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	14 mm
Panel Cutout Dimensions [y]	14 mm
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Keyswitch
Voltage Rating - AC	12 V
Voltage Rating - DC	12 V

Part	Actuator Marking	Mounting Type	Actuator Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Circuit	Color - Actuator/Cap	Termination Style	Mechanical Life	Type	Electrical Life	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Cherry Americas LLC MX1A-G1NN	No Marking	Through Hole	Plunger for Cap	IP40	-40 °C	70 °C	12 V	12 V	Off-Mom	10 mA	SPST-NO	Brown	PC Pin	50000000 Cycles	Keyswitch
Cherry Americas LLC MX1A-C1NN	No Marking	Panel Mount Front	Plunger for Cap				12 V	12 V	Off-Mom	10 mA	SPST-NO	Clear	PC Pin		Keyswitch	20000000 Cycles	-10 °C	158 °F	14 mm	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.25

General part information

Pushbutton Switch SPST-NO Keyswitch Panel Mount, Front
