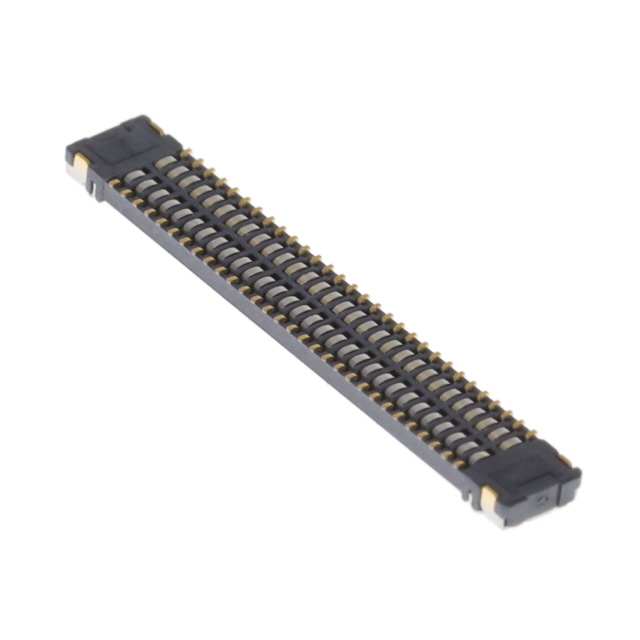

WP27D-S060VA3-R15000

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WP27D-S060VA3-R15000

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Features
JAE Electronics WP27D-S034VA3-R15000	Center Strip Contacts Receptacle	0.7 mm	4 Áin	0.1 Ám	Gold	2	Surface Mount	34	0.71 mm	0.028 in	0.35 mm	0.014 in	Solder Retention
JAE Electronics WP27D-S024VA3-R15000	Center Strip Contacts Receptacle	0.7 mm	4 Áin	0.1 Ám	Gold	2	Surface Mount	24	0.71 mm	0.028 in	0.35 mm	0.014 in	Solder Retention
JAE Electronics WP27D-S030VA3-R15000	Center Strip Contacts Receptacle	0.7 mm	4 Áin	0.1 Ám	Gold	2	Surface Mount	30	0.71 mm	0.028 in	0.35 mm	0.014 in	Solder Retention
JAE Electronics WP27D-S040VA3-R15000	Center Strip Contacts Receptacle	0.7 mm	4 Áin	0.1 Ám	Gold	2	Surface Mount	40	0.71 mm	0.028 in	0.35 mm	0.014 in	Solder Retention
JAE Electronics WP27D-S060VA3-R15000	Center Strip Contacts Receptacle	0.7 mm	4 Áin	0.1 Ám	Gold	2	Surface Mount	60	0.71 mm	0.028 in	0.35 mm	0.014 in	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
