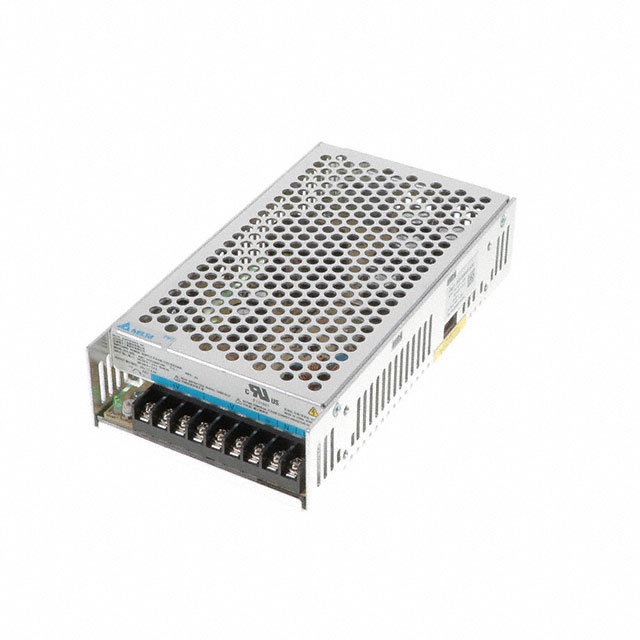

PMT-24V200W1AM
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Search across all available documentation for this part.
PMT-24V200W1AM
ObsoleteDelta Electronics
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-24V200W1AM |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output 1 | 8.8 A |
| Efficiency | 88.5 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 8.46 " |
| Size / Dimension [x] | 215 mm |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [z] | 50 mm |
| Size / Dimension [z] | 1.97 " |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
PMT-24 Series
| Part | Number of Outputs | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation | Current - Output 1 | Power (Watts) | Applications | Type | Mounting Type | Features | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 1 | CB CCC CE cURus TUV | -10 °C | 70 °C | 85 % | 24 V | 3.86 in | 3.86 in | 1.5 " | 98 mm | 98 mm | 38 mm | 3000 V | 1.46 A | 35 W | ITE (Commercial) | Enclosed | Chassis Mount | Adjustable Output Universal Input | ||
Delta Electronics | 1 | CB CCC CE cURus TUV | -10 °C | 70 °C | 86 % | 24 V | 3.86 in | 3.86 in | 1.5 " | 98 mm | 98 mm | 38 mm | 3000 V | 2.09 A | 50 W | ITE (Commercial) | Enclosed | Chassis Mount | Adjustable Output Universal Input | ||
Delta Electronics | 1 | CB CCC CE cURus TUV | -10 °C | 70 °C | 86 % | 24 V | 3.82 in | 6.22 " | 1.5 " | 158 mm | 97 mm | 38 mm | 3000 V | 4.5 A | 100 W | ITE (Commercial) | Enclosed | Chassis Mount | Adjustable Output | 90 VAC 180 VAC | 132 VAC 264 VAC |
Delta Electronics | 1 | CB cURus | -10 °C | 60 °C | 88.5 % | 24 V | 4.53 " | 8.46 " | 1.97 " | 215 mm | 115 mm | 50 mm | 3000 V | 8.8 A | 200 W | ITE (Commercial) | Enclosed | Chassis Mount | Adjustable Output | 90 VAC 180 VAC | 132 VAC 264 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.33 | |
| 5 | $ 50.24 | |||
| 10 | $ 48.97 | |||
| 25 | $ 47.33 | |||
| 50 | $ 46.13 | |||
Description
General part information
PMT-24 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 132 VAC, 180 ~ 264 VAC Input
