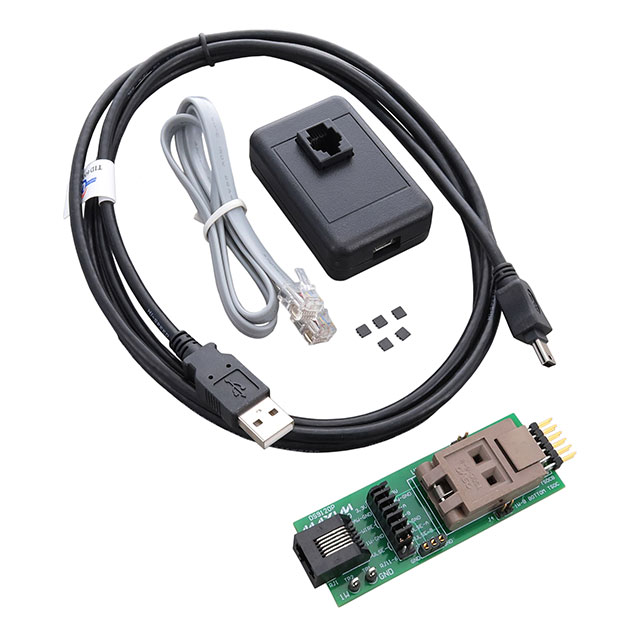

DS28E05EVKIT#

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR DS28E05

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR DS28E05

Technical Specifications

Parameters and characteristics for this part

Specification	DS28E05EVKIT#

Function	EEPROM
Primary Attributes	USB Powered
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Cable(s), Board(s)
Type	Memory

Part	Technology	Memory Size	Memory Format	Access Time	Supplier Device Package	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Memory Organization [custom]	Memory Organization [custom]	Mounting Type	Memory Interface	Supplier Device Package [x]	Supplier Device Package [y]	Write Cycle Time - Word, Page	Supplied Contents	Secondary Attributes	Type	Function	Primary Attributes
Analog Devices Inc./Maxim Integrated DS28E05R+U	EEPROM	896 bit	EEPROM	2 µs	SOT-23-3	Non-Volatile	3.6 V	3 V	85 °C	-40 °C	SC-59 SOT-23-3 TO-236-3	112	8	Surface Mount	1-Wire®
Analog Devices Inc./Maxim Integrated DS28E05P+T	EEPROM	896 bit	EEPROM	2 µs	6-TSOC	Non-Volatile	3.6 V	3 V	85 °C	-40 °C	6-SMD J-Lead	112	8	Surface Mount	1-Wire®
Analog Devices Inc./Maxim Integrated DS28E05X-047-B5+T	EEPROM	896 bit	EEPROM		4-WLP	Non-Volatile	3.63 V	1.71 V	85 °C	-40 °C	4-XFBGA WLBGA	112	8	Surface Mount	1-Wire®	0.91	0.91	5 µs
Analog Devices Inc./Maxim Integrated DS28E05P+	EEPROM	896 bit	EEPROM	2 µs	6-TSOC	Non-Volatile	3.6 V	3 V	85 °C	-40 °C	6-SMD J-Lead	112	8	Surface Mount	1-Wire®
Analog Devices Inc./Maxim Integrated DS28E05R+T	EEPROM	896 bit	EEPROM	2 µs	SOT-23-3	Non-Volatile	3.6 V	3 V	85 °C	-40 °C	SC-59 SOT-23-3 TO-236-3	112	8	Surface Mount	1-Wire®
Analog Devices Inc./Maxim Integrated DS28E05EVKIT#																			Board(s) Cable(s)	Graphical User Interface (GUI)	Memory	EEPROM	USB Powered
Analog Devices Inc./Maxim Integrated DS28E05GB+T	EEPROM	896 bit	EEPROM	2 µs	2-SFN (3.5x5)	Non-Volatile	3.6 V	3 V	85 °C	-40 °C	2-XDFN	112	8	Surface Mount	1-Wire®

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 111.46

General part information

DS28E05 EEPROM Memory Evaluation Board

Technical documentation and resources
