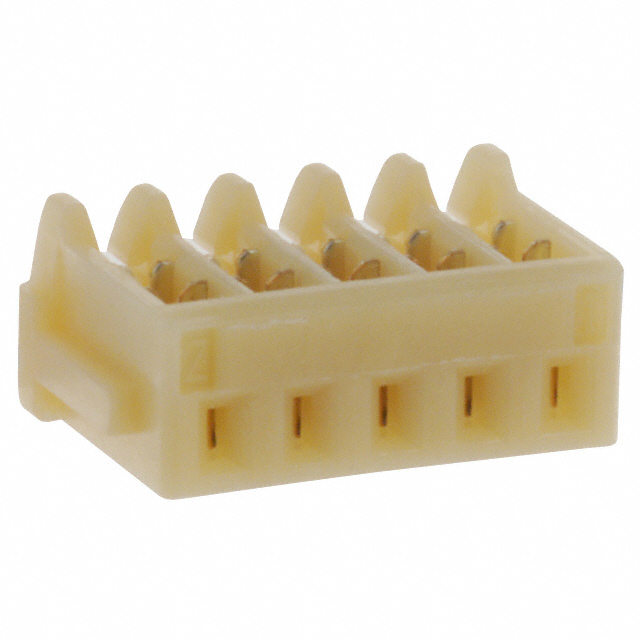

05SR-3S
ActiveJST Sales America Inc.
CONN RCPT 5POS IDC 30AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
05SR-3S
ActiveJST Sales America Inc.
CONN RCPT 5POS IDC 30AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05SR-3S |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Wire Gauge | 30 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 2000 | $ 0.21 | |||
| 4000 | $ 0.20 | |||
Description
General part information
05SR Series
5 Position Rectangular Receptacle Connector IDC Tin 30 AWG
