UHP-500R-36

Active

MEAN WELL USA Inc.

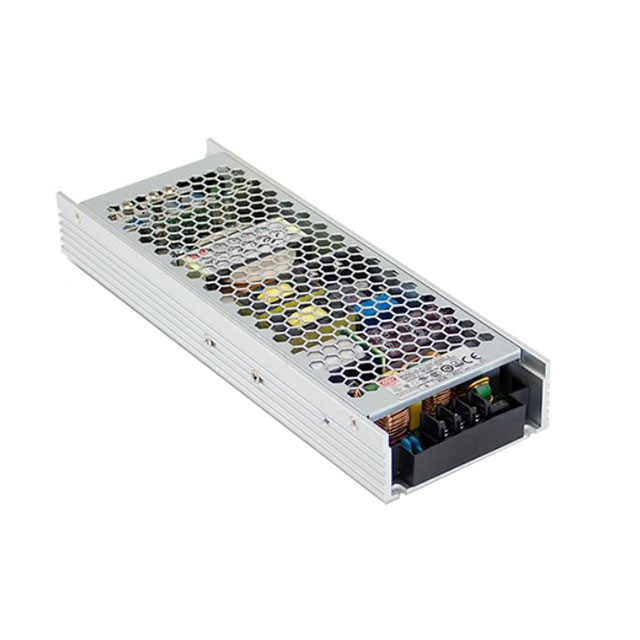

AC/DC CONVERTER 36V 500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UHP-500R-36

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 36V 500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UHP-500R-36

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, TUV, EAC, CE, CB, CCC
Current - Output 1	13.9 A
Efficiency	95 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	500 W
Size / Dimension [x]	232 mm
Size / Dimension [x]	9.13 in
Size / Dimension [y]	81 mm
Size / Dimension [y]	3.19 in
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3750 V
Voltage - Output 1	36 V

UHP-500 Series

Part	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Current - Output 1	Power (Watts)	Voltage - Output 1	Applications	Mounting Type	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Features	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Standard Number
MEAN WELL USA Inc. UHP-500-36	90 VAC 127 VDC	264 VAC 370 VDC	95 %	13.9 A	500 W	36 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-20 °C	70 °C	3750 V
MEAN WELL USA Inc. UHP-500-12	90 VAC 127 VDC	264 VAC 370 VDC	94 %	41.7 A	500 W	12 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-20 °C	70 °C	3750 V
MEAN WELL USA Inc. UHP-500-48	90 VAC 127 VDC	264 VAC 370 VDC	95 %	10.45 A	502 W	48 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-20 °C	70 °C	3750 V
MEAN WELL USA Inc. UHP-500R-12	90 VAC 127 VDC	264 VAC 370 VDC	94 %	41.7 A	500 W	12 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-20 °C	70 °C	3750 V
MEAN WELL USA Inc. UHP-500-55	90 VAC 127 VDC	264 VAC 370 VDC	95 %	8.9 A	490 W	55 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-30 °C	70 °C	3750 V	62368-1
MEAN WELL USA Inc. UHP-500R-36	90 VAC 127 VDC	264 VAC 370 VDC	95 %	13.9 A	500 W	36 V	Household Appliances ITE (Commercial)	Chassis Mount	CB CCC CE cURus EAC TUV	232 mm	9.13 in	81 mm	3.19 in	1.22 in	31 mm	Adjustable Output PFC Universal Input	Enclosed	1	-20 °C	70 °C	3750 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 103.84
		5	$ 97.83
		10	$ 95.35
		25	$ 92.17

Description

General part information

UHP-500 Series

Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC, 127 ~ 370 VDC Input
