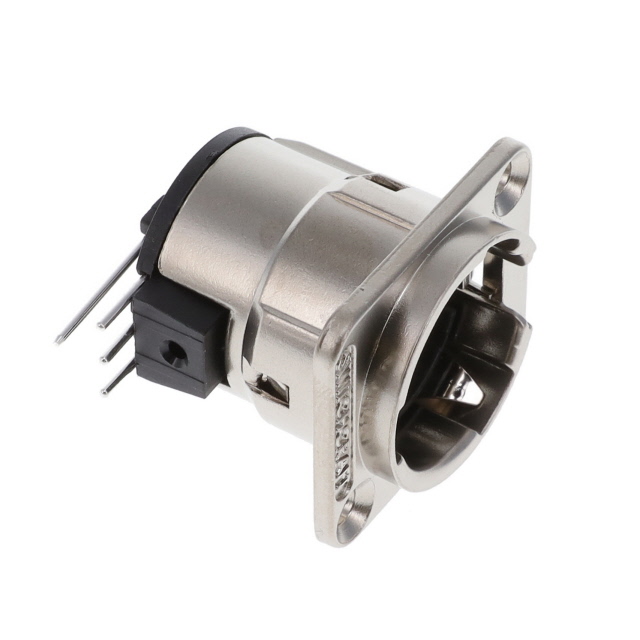

E3MRA

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SILV SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SILV SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	E3MRA

Applications	Audio, Instrumentation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Board Guide, Ground
Insert Material	Thermoplastic
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded
Termination	Solder

Part	Applications	Features	Current Rating (Amps)	Insert Material	Connector Type	Shell Size - Insert	Contact Material	Mounting Type	Orientation	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Feature	Color	Shielding	Shell Material	Fastening Type	Primary Material	Shell Finish
Switchcraft Inc. E3MRAAUQG	Audio Instrumentation	Insert Only Requires Shell	15 A	Thermoplastic	Insert Male Pins	XLR	Copper Alloy	Through Hole Right Angle	Keyed	Gold	85 °C	-55 °C	Solder
Switchcraft Inc. E3MRAQG	Audio Instrumentation	Insert Only Requires Shell	15 A	Thermoplastic	Insert Male Pins	XLR	Copper Alloy	Through Hole Right Angle	Keyed	Silver	85 °C	-55 °C	Solder
Switchcraft Inc. E3MRA	Audio Instrumentation	Board Guide Ground	15 A	Thermoplastic	Male Pins Receptacle	XLR	Copper Alloy	Panel Mount Right Angle Through Hole	Keyed	Silver	85 °C	-55 °C	Solder	Flange	Silver	Shielded	Zinc Die Cast	Latch Lock	Metal	Nickel
Switchcraft Inc. E3MRABAU	Audio Instrumentation	Board Guide Ground	15 A	Thermoplastic	Male Pins Receptacle	XLR	Copper Alloy	Panel Mount Right Angle Through Hole	Keyed	Gold	85 °C	-55 °C	Solder	Flange	Black	Shielded	Zinc Die Cast	Latch Lock	Metal	Chrome
Switchcraft Inc. E3MRAAU	Audio Instrumentation	Board Guide Ground	15 A	Thermoplastic	Male Pins Receptacle	XLR	Copper Alloy	Panel Mount Right Angle Through Hole	Keyed	Gold	85 °C	-55 °C	Solder	Flange	Silver	Shielded	Zinc Die Cast	Latch Lock	Metal	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
