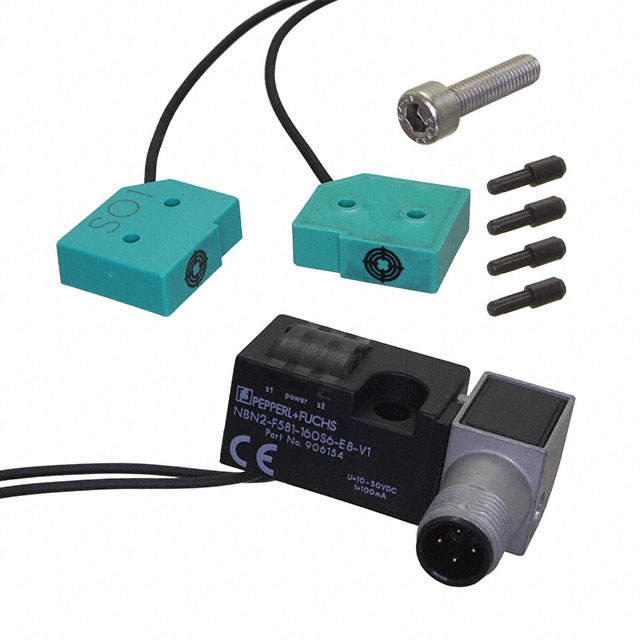

NBN2-F581-160S6-E8-V1

Active

PEPPERL+FUCHS

INDUCTIVE CLAMP SEN 2MM PNP 2XNO

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE CLAMP SEN 2MM PNP 2XNO

Technical Specifications

Parameters and characteristics for this part

Specification	NBN2-F581-160S6-E8-V1

Indicator [custom]	LED
Ingress Protection	IP65
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 4-Wire
Package / Case	Module
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Material - Body	Indicator [custom]	Output Type	Termination Style	Sensing Distance	Sensing Distance	Package / Case	Sensor Type	Shielding
PEPPERL+FUCHS NBN2-F581-160S6-E8-V1	70 °C	-25 °C	30 VDC	10 VDC	IP65	Polybutylene Terephthalate (PBT)	LED	4-Wire PNP-NO	Connector	0.079 in	2 mm	Module	Inductive	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE CLAMP SEN 2MM PNP 2XNO
