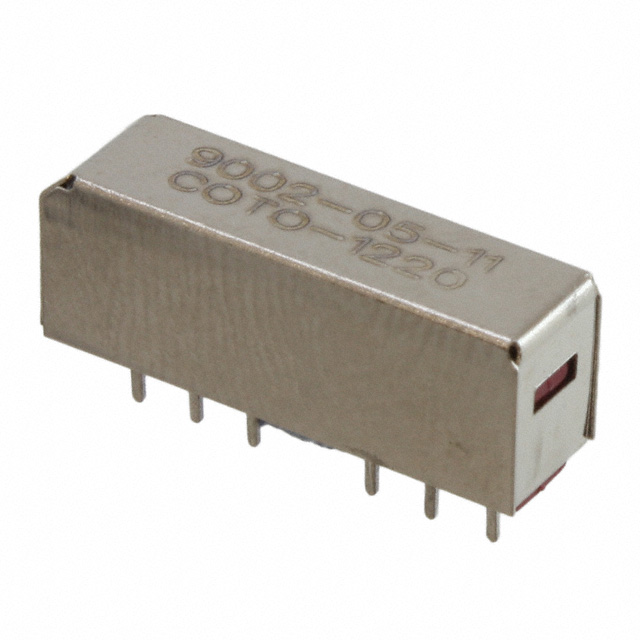

9002-05-11
ActiveCoto Technology
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9002-05-11
ActiveCoto Technology
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9002-05-11 |
|---|---|
| Coil Current | 14.3 mA |
| Coil Resistance | 350 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Features | Magnetic Shield, Diode |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.35 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.74 | |
| 22 | $ 5.38 | |||
| 44 | $ 4.55 | |||
| 110 | $ 4.31 | |||
| 264 | $ 4.21 | |||
Description
General part information
9002 Series
RELAY RF SPST-NO 500MA 5V
