CX80B1-24P

Active

Hirose Electric USA, Inc.

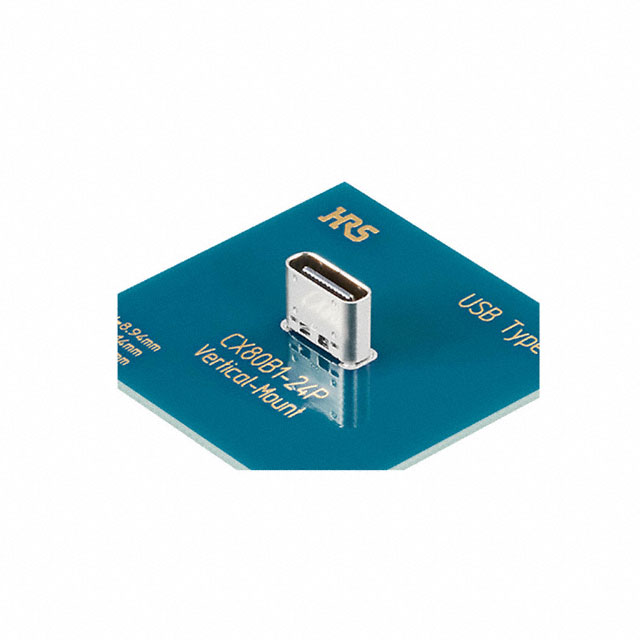

CONN RCPT USB3.1 TYPE C SMT VERT

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT USB3.1 TYPE C SMT VERT

Technical Specifications

Parameters and characteristics for this part

Specification	CX80B1-24P

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	0.25 A, 1.25 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical, Reversible
Mounting Type	Surface Mount, Through Hole
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	20 VAC

Part	Insulation Color	Specifications	Gender	Mating Cycles	Number of Ports	Shielding	Current Rating (Amps)	Mounting Type	Shell/Shielding Material	Material Flammability Rating	Number of Contacts	Termination	Mounting Feature	Contact Finish	Connector Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]
Hirose Electric USA, Inc. CX80B1-24P	Black	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Receptacle	10000	1	Shielded	0.25 A 1.25 A	Surface Mount Through Hole	Stainless Steel	UL94 V-0	24	Solder	Reversible Vertical	Gold	USB-C (USB TYPE-C)	20 VAC	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Through Hole
