TX25-80P-8ST-N1E

Active

JAE Electronics

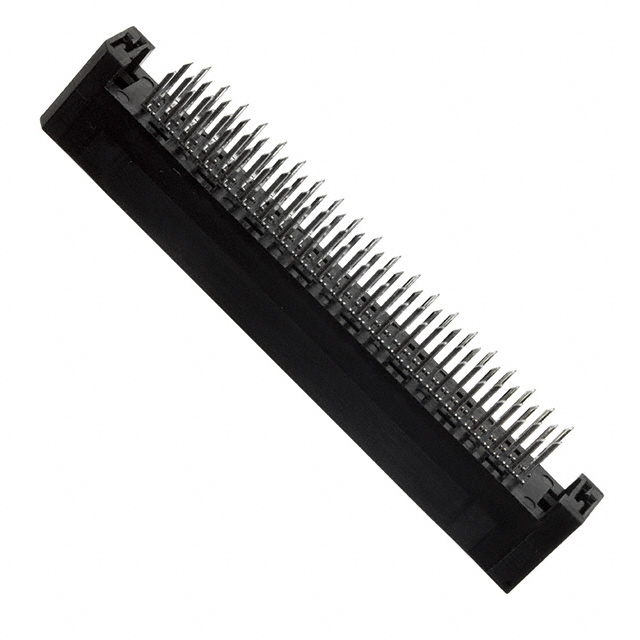

CONN PLUG 80POS VERT GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 80POS VERT GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Mated Stacking Heights	Number of Rows	Height Above Board	Height Above Board
JAE Electronics TX25-80P-8ST-H1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole	80	14 mm 18 mm 20 mm	2	0.441 in	11.2 mm
JAE Electronics TX25-80P-6ST-H1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole	80	12 mm 16 mm 18 mm	2	0.362 in	9.2 mm
JAE Electronics TX25-80P-12ST-H1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole	80	18 mm 22 mm 24 mm	2	0.598 in	15.2 mm
JAE Electronics TX25-80P-6ST-E1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole	80	12 mm 16 mm 18 mm	2
JAE Electronics TX25-80P-12ST-N1E	Gold	0.05 in	1.27 mm	4 in	0.1 m	Through Hole	80	18 mm 22 mm 24 mm	2	0.598 in	15.2 mm
JAE Electronics TX25-80P-8ST-N1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole	80	14 mm 18 mm 20 mm	2	0.441 in	11.2 mm
JAE Electronics TX25-80P-LT-H1E	Gold	0.05 in	1.27 mm	4 Áin	0.1 Ám	Through Hole Right Angle	80		2	0.354 in	9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Connector Plug, Center Strip Contacts Through Hole Gold
