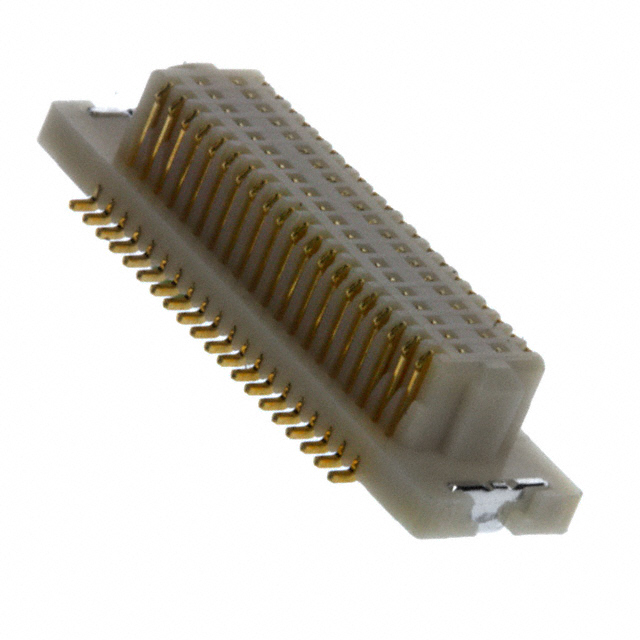

40R-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
40R-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 40R-JMDSS-G-1-TF |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 3.1 mm |
| Height Above Board | 0.122 in |
| Mated Stacking Heights | 5 mm, 6 mm, 4.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.54 | |
| 10 | $ 1.94 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.61 | |||
| 100 | $ 1.49 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.26 | |||
| Digi-Reel® | 1 | $ 2.54 | ||
| 10 | $ 1.94 | |||
| 25 | $ 1.75 | |||
| 50 | $ 1.61 | |||
| 100 | $ 1.49 | |||
| 250 | $ 1.35 | |||
| 500 | $ 1.26 | |||
| Tape & Reel (TR) | 1500 | $ 1.12 | ||
| 3000 | $ 1.05 | |||
| 4500 | $ 1.01 | |||
| 7500 | $ 0.96 | |||
| 10500 | $ 0.93 | |||
Description
General part information
40R-JMDS Series
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
