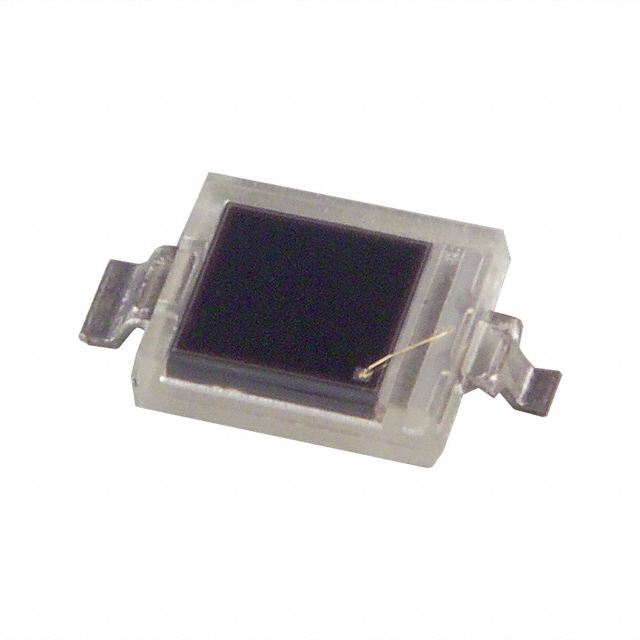

BPW 34 S-Z

Active

ams-OSRAM USA INC.

SENSOR PHOTODIODE 850NM 2SMD GW

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTODIODE 850NM 2SMD GW

Technical Specifications

Parameters and characteristics for this part

Part	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Active Area	Current - Dark (Typ)	Package / Case	Wavelength	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Viewing Angle	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Spectral Range [Max]	Spectral Range [Min]	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Active Area [custom]
ams-OSRAM USA INC. BPW 34 FAS-Z	730 nm	1100 nm	7.02 mm²	2 nA	2-SMD Gull Wing	880 nm	PIN	100 °C	-40 °C	20 ns	120 °	16 V	Surface Mount
ams-OSRAM USA INC. BPW 34 FS-Z			7 mm²	2 nA	2-SMD Gull Wing	950 nm	PIN	100 °C	-40 °C	20 ns	120 °	16 V	Surface Mount	1100 nm	780 nm
ams-OSRAM USA INC. BPW 34 FSR-Z			7 mm²	2 nA	2-SMD Gull Wing	950 nm	PIN	100 °C	-40 °C	20 ns	120 °	16 V	Surface Mount	1100 nm	780 nm
ams-OSRAM USA INC. BPW 34 FASR-Z	730 nm	1100 nm		2 nA	2-SMD Z-Bend	880 nm	PIN	100 °C	-40 °C	20 ns	120 °	16 V	Surface Mount
ams-OSRAM USA INC. BPW 34 S-Z				2 nA	2-SMD Gull Wing	850 nm	PIN	100 °C	-40 °C	20 ns	120 °	32 V	Surface Mount			1100 nm	400 nm	7 mm˛
ams-OSRAM USA INC. BPW 34 SR-Z				2 nA	2-SMD Gull Wing	850 nm	PIN	100 °C	-40 °C	20 ns	120 °	32 V	Surface Mount			1100 nm	400 nm	7 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 850nm 20ns 120° 2-SMD, Gull Wing
