C1604.41.01

Active

Prysmian Group

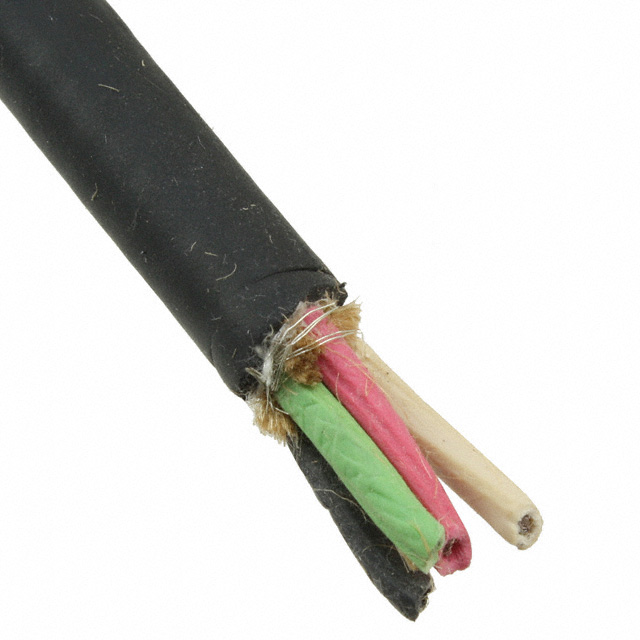

CABLE 4COND 16AWG BLACK SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 16AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C1604.41.01

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	0.385 "
Jacket (Insulation) Diameter [diameter]	9.78 mm
Jacket (Insulation) Material	Carolprene
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Shield Coverage	80 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	16 AWG

Part	Length	Length	Length [x]	Length [x]	Shield Type	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Shield Material	Shield Coverage	Jacket (Insulation) Material	Conductor Material	Voltage	Jacket Color	Number of Conductors
Prysmian Group C1604.41.01	1000 ft	15.24 m 304.8 m	30.5 m	50 ft 100 ft	Braid	16 AWG	0.889 mm	0.035 in	Multi-Conductor	Rubber	0.385 "	9.78 mm	34 AWG	65	-25 °C	60 °C	Communication Control	Copper Tinned	80 %	Carolprene	Copper Tinned	300 V	Black	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 16 AWG Braid 1000.0' (304.8m)
