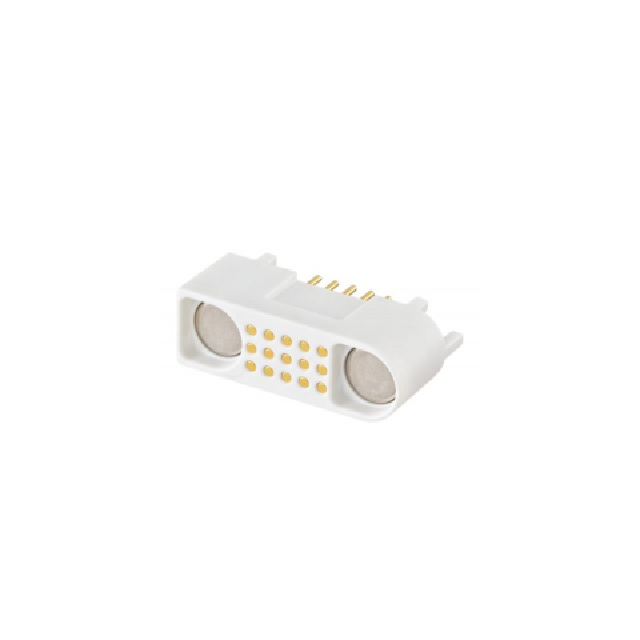

M9K103-400L

Active

Rosenberger

CONN RCPT 15POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Rosenberger

CONN RCPT 15POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	M9K103-400L

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	1.5 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	White
Insulation Height	14.5 mm
Insulation Height	0.571 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	12 V

Part	Number of Positions	Number of Rows	Connector Type	Current Rating (Amps)	Contact Material	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Voltage Rating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Material Flammability Rating	Style	Insulation Material	Contact Finish - Mating	Mounting Type	Contact Type	Features	Fastening Type
Rosenberger M9K103-400L	15	3	Receptacle	1.5 A	Brass	All	White	0.1 in	2.54 mm	12 V	Solder	2.54 mm	0.1 in	14.5 mm	0.571 in	65 °C	-25 °C	Circular	UL94 V-0	Board to Cable/Wire	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Female Socket	Board Guide	Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	75	$ 31.66

General part information

15 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
