130E405042-E

Active

METZ CONNECT USA Inc.

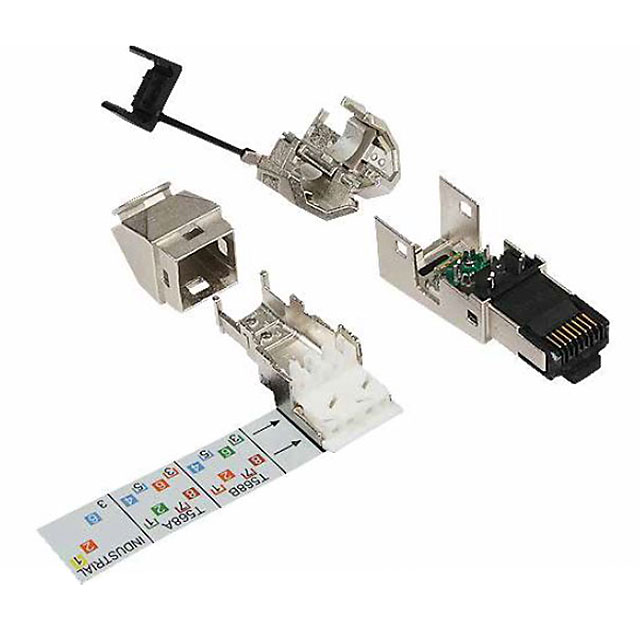

CAT 6A RJ45 FIELD PLUG PRO 360

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CAT 6A RJ45 FIELD PLUG PRO 360

Technical Specifications

Parameters and characteristics for this part

Specification	130E405042-E

Cable Type	Round Cable, Solid, Stranded Wires
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Current Rating (Amps)	1 A
Features	Housing, Strain Relief, Locking Hook, Angled - 90°
Housing Material	Zinc Die Cast
Length [x]	1.96 "
Length [x]	49.78 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6a
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

Part	Color	Features	Contact Finish	Voltage Rating	Number of Positions/Contacts	Ratings	Length [x]	Length [x]	Termination	Housing Material	Connector Type	Contact Material	Shielding	Cable Type	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
METZ CONNECT USA Inc. 130E405042-E	Black	Angled - 90° Housing Locking Hook Strain Relief	Gold	50 V	8p8c (RJ45 Ethernet)	Cat6a	1.96 "	49.78 mm	IDC	Zinc Die Cast	Plug	Tin Bronze	Shielded	Round Cable Solid Stranded Wires	1 A	22 AWG	27 AWG
METZ CONNECT USA Inc. 130E405042PE	Green	Angled - 90° Housing Locking Hook Strain Relief	Gold	50 V		Cat5	1.961 in	49.8 mm	IDC	Zinc Die Cast	Plug	Tin Bronze	Shielded	Round Cable Solid Stranded Wires	1 A	22 AWG	27 AWG	4	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
