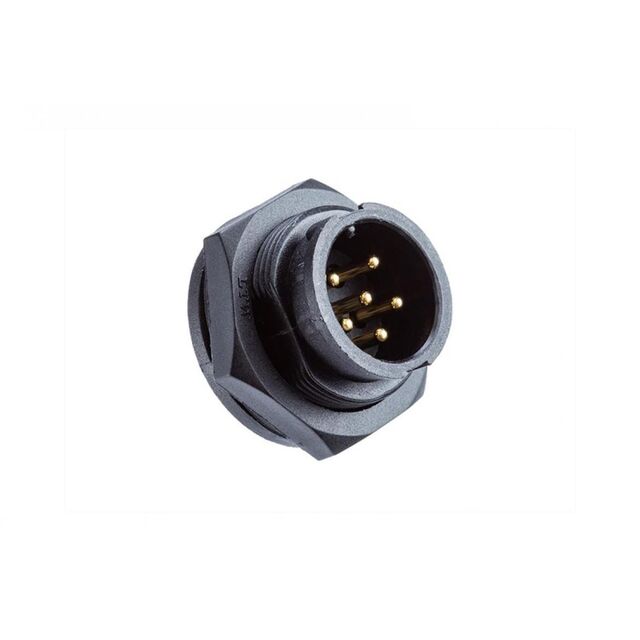

ACD-07PMMS-LC7001

Active

Amphenol LTW

MIDDLE STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MIDDLE STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-07PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Shell Size - Insert	Contact Material	Mounting Feature	Ingress Protection	Insert Material	Orientation	Number of Positions	Material Flammability Rating	Shielding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Shell Finish	Current Rating (Amps)	Color	Contact Finish - Mating	Primary Material
Amphenol LTW ACD-07PMMS-LC7001	C	Copper Alloy	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	Keyed	7	UL94 V-0	Unshielded	300 VDC	-40 °C	105 ░C	Bayonet Lock	Male Pins Receptacle	Nickel	5 A	Black	Gold	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
